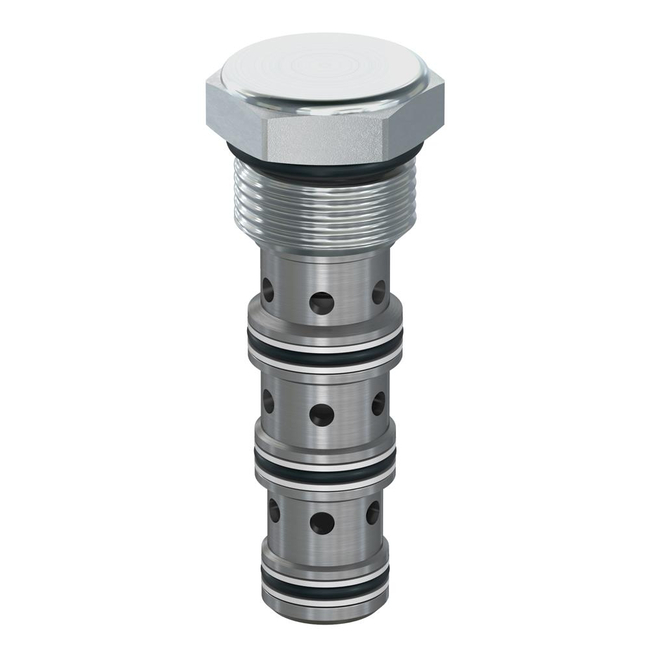

Flow Divider/Combiner Valves
Brand: Parker HannifinParker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi).
Standard and custom ratios are available, along with optimized flow range options.
Specifications
Brand
Cavity Size
- C10-4, C16-4, 91-1
Filtration Ratings
- ISO 4406: 1999 Code 18/16/13
Flow Range (gpm)
- 1-3, 3-6, 4-8, 6-12, 4-10, 3-9, 1.6-2.6, 2.1-5.3, 2.6-7.9, 3.2-10.6, 3.4-13.2, 3.7-15.9, 5.3-15.9, 6.6-23.8, 9.2-31.7, 14.6-39.6, 17.2-47.8, 15.9-39.7, 19.8-60.8, 29.1-84.7
Flow Range (Lpm)
- 3.8-11.3, 11.3-22.5, 15-30, 22.5-45, 15-37.5, 11.3-33.8, 6-10, 8-20, 10-30, 12-40, 13-50, 14-60, 20-60, 25-90, 35-120, 55-150, 65-180, 60-150, 75-230, 110-320
Flow Rate Accuracy
- 10%
Function
- Flow Divider/Combiner
Installation Torque (Lbs/Ft)
- 16, 37, 74, 110
Installation Torque (Nm)
- 22, 50, 100, 150
Maximum Inlet Pressure (bar)
- 245, 420, 350
Maximum Inlet Pressure (psi)
- 3500, 6000, 5000
Operating Temperature (°C)
- -34° to +121° C, -26° to +204° C
Operating Temperature (°F)
- -30° to +250° F, -15° to +400° F
Rated Flow (gpm)
- 12, 16, 47, 85
Rated Flow (Lpm)
- 45, 60, 180, 320
Rated Fluid Viscosity (CSt)
- Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)
Ratio
- 50/50, 60/40, 33/66
Seal Material
- Nitrile, Fluorocarbon
Valve Material
- All Parts Steel. All Operating Parts Hardened Steel
Weight (kg)
- 0.14, 0.12, 0.4, 1
Weight (Lbs)
- 0.3, 0.26, 0.86, 2.2
