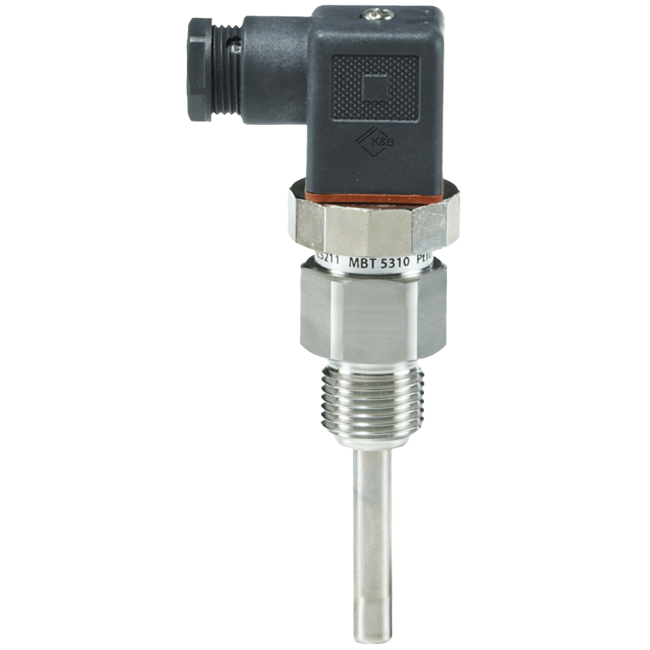

MBT 5310 Bearing Temperature Sensor
Brand: Danfoss
The MBT 5310 temperature sensor series is specially designed for measuring the temperature in bearings where there is a risk of overheating.
To get a very short reaction time the measuring element is placed in a way to secure a reaction time of down to t0.5 = 6 seonds in water.
The sensor is fitted with an adjustable spring loaded protection tube which ensures metallic contact between bearing and sensor at all times.
Features- Based on Pt 100 / Pt 1000 technology for use up to 200° C (392° F)
- Spring loaded to ensure good contact with the bearing
Specifications
Brand
Applications
- Engines
- Gearboxes
- Wind Turbines
Approvals & Certifications
- ABS - American Bureau Shipping
- BV
- CCS
- DNV
- KRS
- RINA
BSP Connection
- G 1/2" A Male
- G 3/4" A Male
Cable Length
- 3.28 to 32.8 feet (1 to 10 metres)
Cable Material
- FEP
- Polyolefin
Connection Material
- Polyamide, Max.
Electrical Connectors
- 2-Wire
- 3-Wire
- 4-Wire
- B-Head Standard, 4-Wire / 4-Terminals
- B-Mini Head 2-Wire / 3-Terminals, 4-Wire / 4-Terminals, 2-Wire / 2 Terminals
- EN 175301-803-A, Plug PG11 2-Wire / 3-Terminals, 4-Terminals No Grounding Pin
- EN 175301-803-A, Plug PG9 2-Wire / 3-Terminals, 4-Terminals No Grounding Pin
- M12 4-Pin (2-Wire, 4-Wire)
Environmental Protection
- IP65 According to IEC 60529
- IP67 According to IEC 60529
Gasket Material
- Silicone
Insertion 'U' Length
- 2.75" to 22.44" (70 to 570 mm) - Brass
- 2.87" to 22.44" (73 to 570 mm) - Stainless Steel
Materials of Construction
- Bayonet, Protection Tube: AISI 316 Stainless Steel
- Die Cast Aluminum - B-Head
- Protection Tube: 316Ti Stainless Steel, 1.4542 (Acid-Proof Steel, Ø 8 x 1 mm)
NPT Connection
- 1/2" NPT Male
Nut & Bolt Material
- Nut: Nickel-Plated Brass
O-Ring Material
- FPM
Process Connection Material
- AISI 316 Stainless Steel
- Brass
Process Fitting Details
- Adjustable Spring Loaded
Response Time
- 35 to 140 seconds for Air 1 m/second
- 6 to 20 seconds for Water 0.2 m/second
Sensor / Probe Type
- Pt100
- Pt1000
Shock
- 100 G, 6 ms
Spring Material
- Stainless Steel
Temperature Range
- -50° to 200° C (-58° to 392° F)
Tolerance
- EN 60751 Class B: ± [0.3° C (0.54° F) + 0.005 x T]
Vibration
- 4 G Sine Function at 2 to 100 Hz According to IEC 60068-2-6
For monitoring of bearing temperatures where there is risk of overheating, in applications such as:
- Wind turbines
- Engines
- Gearboxes
