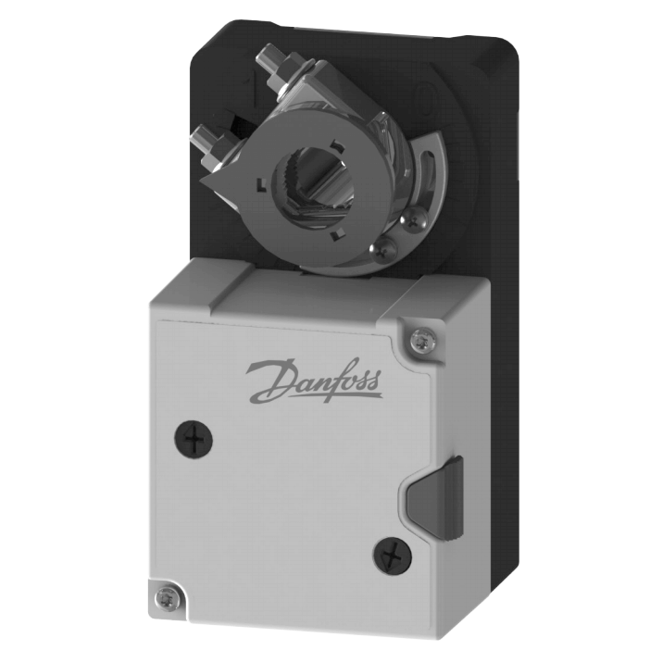

AMD 510/510 AS Damper Actuator
Brand: DanfossAMD Actuators are used for the regulation of air dampers of 90° angle of rotation to be used in heating, ventilation and air conditioning applications (HVAC).
Features- Manual operation
- Rotation direction selection by switch
- 2/3 Point control adjustable rotation angle of rotation by mechanical end stop minimum 20°
- Modulating control ajdustable angle of rotation with end stop
- Position indication
- Overload protection
- Direct mounting with universal spindle clamp
- Anti-Rotation strap for preventing actuator from rotating
- Maintenance free
Specifications
Brand
Adjustment
- Auxiliary Switch
Ambient Temperature Range
- -30° to 50° C (-22° to 122° F)
Applications
- Air Conditioning Systems
- Heating Applications
- Ventilation Systems
Approvals & Certifications
- CE (2011/65/EU)
- EMC Directive 2004/108/EC: EN 61000-6-2, EN 61000-6-3
- Low Voltage Directive (LVD) 2006/95/EC: EN 60730-1, EN 60730-2-14
- RoHS
Class
- Protection Class: Class II (230 V)
- Protection Class: Class III (24 V)
Consumption
- Power Consumption in Motion: 2.5 W
- Power Consumption in Stand-By (End Position): 1 W
Environmental Protection
- IP54
Frequency
- 50/60 Hz
Humidity
- Ambient Humidity: 5 to 95 % Non-Condensing (EN 60730-1)
Input
- 2-Point
- 3-Point
Mounting
- Direct Mounting with Universal Spindle Clamp
Operation
- Manual Operation
Power Supply
- 230 Vac/dc, ± 20 %
- 24 Vac/dc, ± 20 %
Rotation
- Rotation Angle: 0° to 95°
Speed
- 150 seconds/90°
Storage Temperature
- Transport Temperature: -30° to 80° C (-22° to 176° F)
Supply Voltage
- Rated Impulse Voltage: 4 kV (EN 60730-1)
Switch Type
- Mode Switch
- Rotary Switches
Torque
- 132.8 in/lb (15 Nm)
- Heating, Ventilation and Air Conditioning applications (HVAC)
