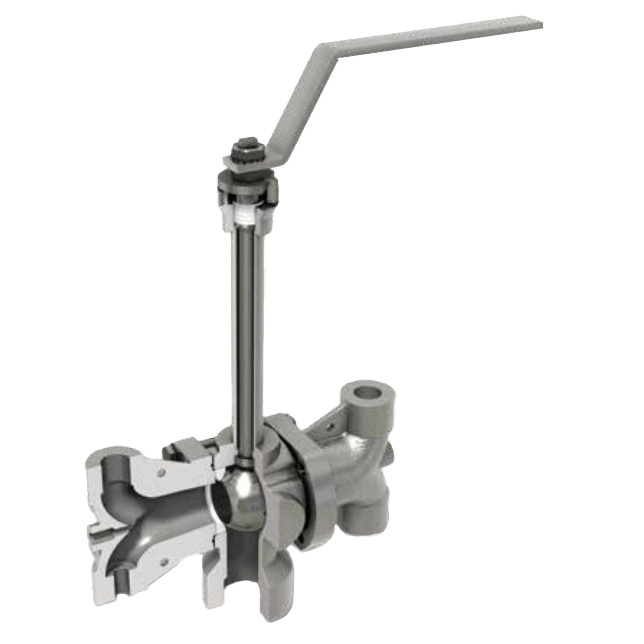

TBV Series 21/51A Cryogenic Ball Valve

Brand: Cameron

Cameron is a leading provider of valves, valve automation, and measurement systems to the oil and gas industry.

Its products are used primarily to control, direct, and measure the flow of oil and gas as it is moved from individual wellheads through flowlines, gathering lines, and transmission systems to refineries, petrochemical plants, and industrial centers for processing.

Cameron provides critical service valves for refinery, chemical, and petrochemical processing businesses, and for associated storage terminal applications, particularly through its ORBIT and GENERAL VALVE product lines.

These brands are complimented by WKM® and TBV™ valve products, and considerably expand the scope of Cameron’s product offerings.

Specifications

Brand

Approvals & Certifications

  • API 607 - Fire-Safe Tested & Certified
  • Cryogenic Testing: BSI BS 6364, Bechtel 3PC-PV00-F0001 & Chevron Low-Temperature & Cryo-Service
  • FE (Fugitive Emissions) Test: ISO 15848

Ball Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 317 Stainless Steel
  • 630 Stainless Steel
  • Brass
  • Inconel
  • Nitronic 50

Configuration

  • Floating Ball - Ball/Seat Configuration

Enclosure Finish

  • Chrome-Carbide Coating
  • Electro-Polishing
  • Tungsten-Carbide Coating

Enclosure, Body Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 317 Stainless Steel
  • 630 Stainless Steel
  • Brass
  • Inconel
  • Nitronic 50

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 600# ASME

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 600# ASME

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Gasket Material

  • Spiral-Wound Body Gasket: Hastelloy C Grafoil

Handle Assembly Material

  • Stainless Steel - Locking Oval Handle, Oval Handle

NPT Connection

  • 1” NPT Female
  • 1” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male

Nut & Bolt Material

  • A193 B8M CL2 x A194 8M
  • ASTM A193 B8M CL2 x A194 8M
  • ASTM A320 L7 x A194 Grade 4
  • Inconel 718

Operation

  • 180° Operation (Diverter Valve)
  • 90° Operation (Diverter Valve)

Port

  • Full
  • Reduced (Standard, Regular)

Pressure Range

  • psi: 0 to 600 (kPa: 0 to 4,137, bar: 0 to 40)

Relief

  • Cavity Pressure Relieving Seats (For Bi-Directionality)
  • Self-Relieving Seats
  • Upstream End Plate Slot

Seat / Seal Material

  • Cryofil
  • CTFE
  • Grafoil
  • Graphite
  • JLON
  • Metal
  • PTFE
  • Spiral-Wound Body Seal: 316 Stainless Steel
  • Spiral-Wound Body Seal: TFE
  • Ultrafil

Stem Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 317 Stainless Steel
  • 630 Stainless Steel
  • Brass
  • Inconel
  • Nitronic 50 HS

Temperature Range

  • -269° to 121° C (-452° to 250° F)

Tube Connection

  • 1” Tube
  • 1-1/2” Tube

Valve Type

  • Manual

Size

  • 1” (25 mm) Standard Port
  • 1” Full Port
  • 1-1/2” (40 mm) Full Port

  • Aerospace Equipment
  • Air Separation
  • Cold Service Applications
  • FLNG (Floating LNG) Production
  • Food Freezing
  • High-Purity Gases for Semiconductor Applications
  • Liquefaction (Export Terminals)
  • Liquefied Petroleum Gas (LPG)
  • Pharmaceutical (Blanketing, PH Control, Pipe Freezing, Process Chilling, Water Treatment & Shrink Fitting)
  • Pipelines & Refueling
  • Transport (Trucking, Marine, Rail)
