AST Miniature Load Cell, XFTC302

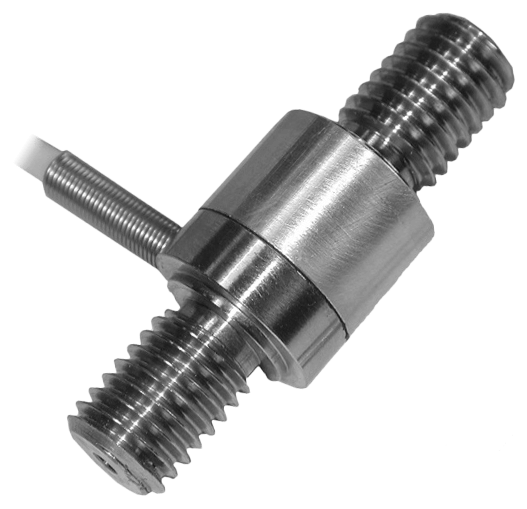

XFTC302 Miniature Load Cell

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The XFTC302 series has been specifically developed to measure tension and/or compression in static and dynamic applications.

Fitted with metallic strain gauges in a Wheatstone bridge circuit, the XFTC302 has the capacity of measuring heavy loads of up to 10,000 N, 2000 lbf while providing excellent temperature stability. With two threaded M10 studs, the XFTC302 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.
Features
  • Wide Temperature Compensation Range
  • Optional IP Rating Improvement
  • Heavy Duty
  • Integrated Amplifier Optional
  • Easy to Customized Signal and Design

View_Details

Specifications

Brand

Approvals & Certifications

  • CE

Compensated Temperature

  • 0° to 150° C (32° to 302° F) - without Electronic
  • 0° to 85° C (32° to 185° F) - with A1 Option

Consumption

  • < 30 mA

Electrical Connectors

  • Shielded Cable with 4-Wires (AWG 28)

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP50

Hysteresis

  • ≤ ± 0.5 % of Full Scale

Input Impedance

  • 700 ohms

Insulation Resistance

  • ≥ 1,000 megaohms at 50 Vdc
  • ≥ 100 megaohms at 50 Vdc

Linearization

  • ≤ ± 0.5 % of Full Scale

Operating Temperature

  • -40° to 85° C (-40° to 185° F) - with A1 Option
  • -55° to 175° C (-67° to 347° F) - without Electronic

Resistance

  • 500 to 1,000 ohms - Output Impedance

Sensitivity

  • < 1 % of Reading / 50° C (100° F) - Thermal Sensitivity Shift
  • ± 1 mV/V of Full Scale Output
  • ± 2 V ± 0.2 V of Full Scale Output

Supply Voltage

  • 10 Vdc
  • 10-30 Vdc

Thermal Drift

  • < 1 % of Full Scale / 50° C (100° F) - Thermal Zero Shift in CTR

UNF/UNC Connection

  • 3/8”-24 UNF Male

Zero Offset

  • < ± 5 % of Full Scale
  • 2.5 V ± 0.2 V

  • Dynamic Strain Cylinder Regulation
  • Miniature Force & Temperature Tests
  • Motor Sport Clutch Monitoring
  • Robotics Regulation
  • Heat Room Environment

Documentation

Data Sheets
