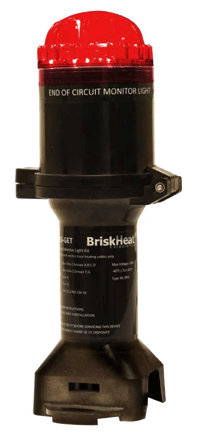

End of Circuit LED Monitor Light Kit
Brand: Briskheat
BriskHeat End of Circuit LED Monitor Light Kits are the ideal solution when working with large lengths of heat trace.
This high-profile light with 360° visibility, indicates voltage at the end of the circuit.
A super bright green/red light lets you know your heat trace cable is energized and working!
Each kit can complete on end of circuit LED monitor light end seal termination.
Kit Contents:
- 1 - End seal stand and light assembly with O-ring and grommet
- 2 - 16-14 insulated parallel splice crimps
- 1 - Silicone lead termination boot
- 1 - Rubber strain relief grommet
- 1 - Pipe strap - for 2 in - 6 in (51 mm - 152 mm) O.D. pipes
- 1 - End seal label
- Approved for ordinary and hazardous locations
- Voltages up to 240 VAC
- Easy to install – hot work permit not required
- Easy re-entry for maintenance
- Compatible with up to 4 in (102 mm) of insulation and cladding
- Available Light Colors: Green or Red
Specifications
Brand
Maximum Voltage
- 240 Vac
Maximum Current
- 32 A
Lumen Output
- 10 lumen
Body Material
- Non-conductive FRP Plastic
Overall Height
- 8.2 in (208 mm)
Maximum Continuous Exposure Temperature
- T5: 212° F (100° C)
Ambient Exposure Temperature
- -40° to 149° F (-40° to 65° C)
IP Rating
- IP66/NEMA 4X
Certifications & Approvals
- cCSAus
