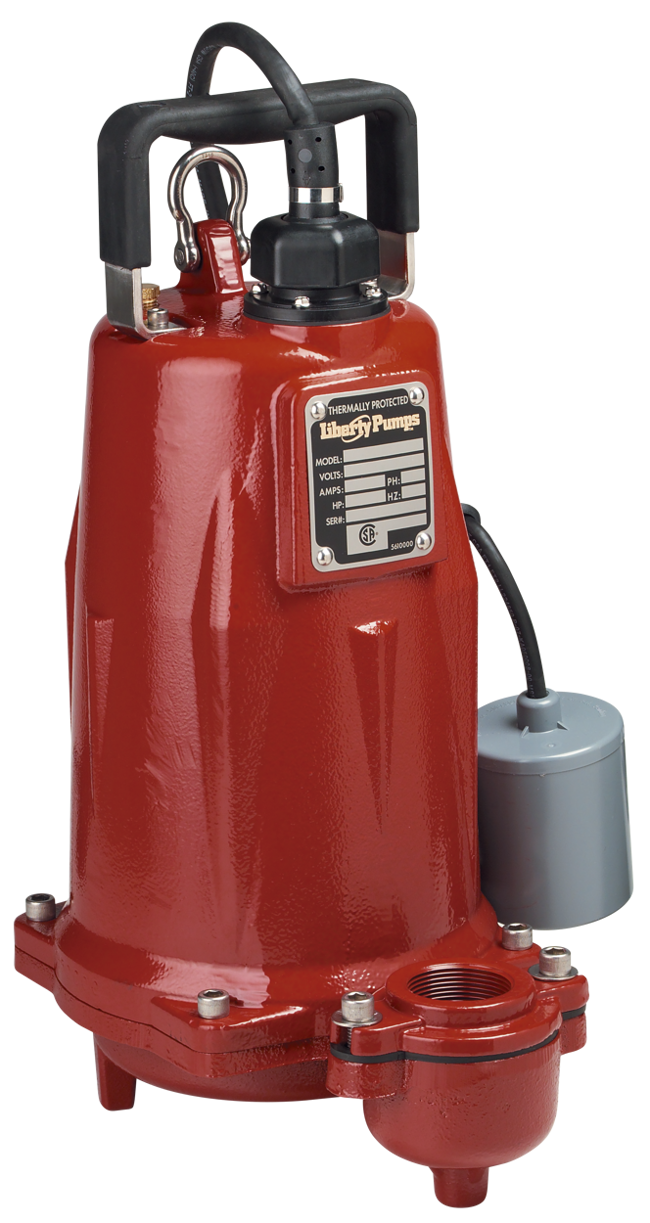

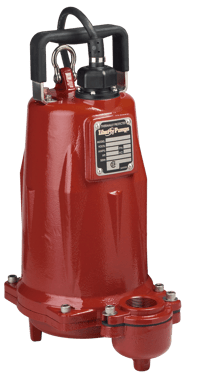

FL150-Series 1-1/2 hp High-Head Effluent Pump
Brand: Liberty Pumps
The FL150-Series by Liberty Pumps is a 1.5 hp effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications.
The pump features a dual-sized threaded discharge of 1-1/2" and 2" for connection to either size pipe.
Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL150-Series will provide years of reliable performance.
Features- 3/4" Solids handling
- Heavy cast iron construction
- Semi-open cast iron impeller
- Stainless steel rotor shaft
- Dual shaft seals
- Single float, mercury-free level control
- Additional mounting clamp provided for optional switch mounting to pipe
- Fully adjustable pumping range
- 2" FNPT threaded discharge with 1-1/2" FNPT flange provided
- Quick-connect power cord - 25' length standard
- Available in automatic and manual models
Specifications
Brand
Impeller
- Semi-open Cast Iron Class 25 3/4" Solids Handling
Finish
- Powder Coat
Motor
- Oil-filled, Hermetically Sealed, and Class B Insulation Rating
Motor Housing
- Class 25 Cast Iron
Pump Power
- 575 V, 3-phase, 4.9 A
- 440-480 V, 3-phase, 5.7 A
- 208-230 V, 1-phase, 15 A
- 208/230 V, 3-phase, 11.4 A
Power Cord
- 25 ft Standard
- 35 ft, 50 ft Optional
- Quick-connect
Discharge
- 1-1/2" or 2"
Dual Shaft Seal
- Upper: Unitized Graphite Impregnated Silicon Carbide
- Lower: Viton Double Lip
Fastener
- 300 Series Stainless Steel
Maximum Fluid Temperature
- 104° F (40° C) Continuous Duty
- 140° F (60° C) Intermittent
Certifications & Approvals
- cCSAus
- SSPMA
- STEP Systems
- Mound Systems
- Liquid Waste Transfer
- Higher Head De-watering Applications
