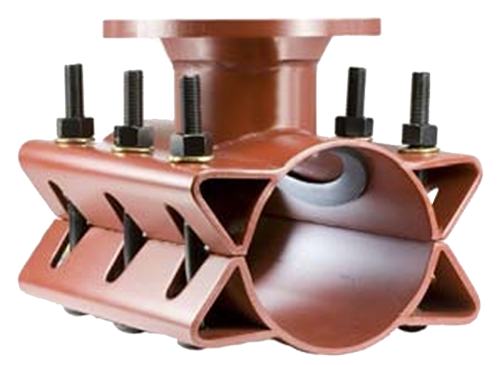

JCM 472.png

Carbon Steel Tapping Sleeves JCM 472

Brand: JCM Industries, Inc
Add Product to My Catalog

Built-in benefits make these heavy fabricated steel sleeves increasingly popular for making larger taps on all types of pipes.

By placing the design emphasis on eliminating problems inherent with older pipe and field installations.

JCM Fabricated Tapping Sleeves have taken the complexity out of tapping or branching pipe.
Features
  • Built in range - accommodates pipe industry tolerances and non-standard pipe diameters.
  • Ease of assembly - eliminates extra equipment, time and specially trained personnel.
  • Ready availability - taps can be made without long delays - even taps on special sizes of pipe - or services requiring high pressure flanges.
  • Direct reinforcement of the pipe - eliminates flexing or deflection of pipe opposite the tap.
  • Large gasket cross section set in retaining cavity - provides a positive initial seal which increases with increases in line pressure.
  • Heavy steel sleeve - eliminates deflection possibility. Most important, JCM Fabricated Tapping Sleeves assure a safe dependable tap.

View_Details

Specifications

Brand

Body

  • ASTM 283, ASTM 285 Grade C, ASTM A516 Grade 70 Steel or equal.

Bolts

  • Corrosion resistant, high strength low alloy ASTM A242, A193 B5, B7. Optional A193 B8 304 stainless steel or 316 stainless steel.

Gasket

  • Nitrile Butadiene Rubber (NBR, Buna-N) per ASTM D2000. Molded virgin rubber with a pressure activated hydromechanical design.
  • Gasket is bonded into a cavity for internal and external retention.
  • Gasket temperature range -40oF to 212oF (-40oC - 100oC). Gasket suitable for water, salt solutions, mild acids, bases, and sewage. Optional gasket materials available.

Finish

  • Heavy coat of corrosion resistant metal primer.
  • Optional Fusion Epoxy Coating available

Standard Flange

  • ASME/ANSI B16.5 Class 150, 300, ASTM A105

Documentation

Brochure
