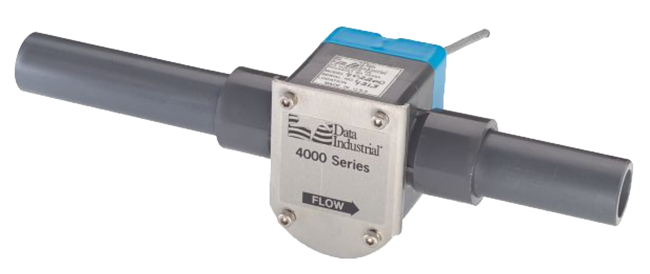

Series 4000 Flow Sensor
Brand: Badger MeterThe 4000 series flow sensor is an in-line, flow-through design using a tangential six bladed impeller.
Its compact molded design allows the 4000 series to replace old style magnetic sensors with little or no piping changes.
The proprietary non-magnetic detection circuit is available with two outputs, compatible with most data acquisition or PLC equipment.
Features- In-line, flow-through design using a tangential six bladed impeller
- 4-20 mA Analog output programmable in field
- Flow detection electronics can be serviced or replaced without opening the pipe. No exposure to wetted parts
- Impeller bearings and shaft can be easily replaced without removing the sensor from the pipe
- Documented operating service life in high temperature ultrapure water. Over 40 months of continuous 24 hr/day operation
- Superior particle-shedding performance verified by independent laboratory testing
- Low flow capabilities
Specifications
Brand
Normal Pipe Size
- ½ in. (20 mm)
- ¾ in. (25 mm)
- 1 in. (32 mm)
End Connections
- PVC: Plain End Pipe
- PVDF: Socket Weld/Union
Standard Flow Range
- 1…20 fps
Low Flow Range
- 0.25…8 fps
Accuracy
- Better than 1%
Repeatability
- ± 0.5%
Max Temperature Rating
- PVC: 140°F (60°C)
- PVDF: 220°F (104°C)
Max Pressure Rating
- PVC: 350 psi @ 73°F (23°C)
- PVDF: 275 psi @ 65°F (18°C)
- Process & General Industry
- Refining, Chemical & Petrochemical
