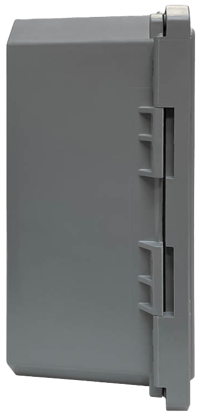

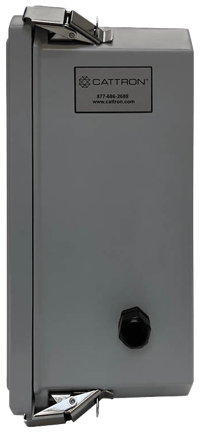

Aquavx Wireless SCADA System

Brand: Cattron

The Aquavx™ is a wireless SCADA water system for remote monitoring, control and alarm notification. It is designed for mid-sized pump and lift stations, gas compressor stations, substations, and water and wastewater treatment plants. The remote monitoring system offers fixed I/O with ten digital inputs, four analog inputs, two relay outputs and 58 Modbus RTU channels.
  • Local user interface features:
    • View run-times, cycles, levels, flow and totalized flow on the local display
    • Control pumps, valves and other field devices
    • View inflow, outflow and rain event totals
    • Dynamic scrolling display allows you to choose which channels to display

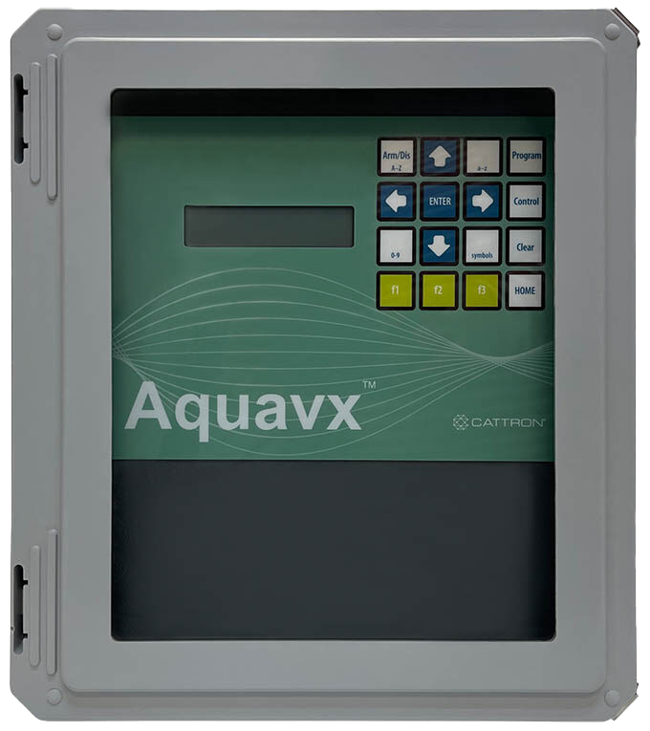

    • Local keypad and display for viewing status, configuration changes and more
  • Alarm notifications via email, text message or voice calls:
    • Excessive run times or cycles or excessive variation in pump run times or cycles
    • Exceeding limits on tank levels, pressure, flow rates or motor amps
    • Power fail and low battery level
    • Loss of cellular or Modbus communications
    • Rainfall exceeds the limit
  • Local display automatically rotates any data selected for quick viewing of complete system status, including current alarms, values and signal strength
  • Scheduled and/or on-demand reports for run times, total inflow and outflow, alarm history and complete audit trail
  • Local relays can be automatically controlled based on preconfigured set points or conditions. They de-energize automatically when all channels have returned to normal conditions, upon the programmable timer expiring or upon local or remote request
  • Peer-to-peer communication between Aquavx and Messenger units enabling system-wide controls
  • Remote site viewing and management through RemoteIQ™ using mobile or desktop devices
Features
  • Powered by RemoteIQ™ Water
  • For mid-sized applications
  • Standard I/O includes digital, analog, relay, and Modbus channels
  • Data, alarms, rosters, history and audit trails
  • No networks to maintain, no engineering, and no 3rd party licensing
  • Data is available 24/7 via mobile device or laptop

Specifications

Brand

Enclosures

  • NEMA 4X
  • Flush/Panel mount metal enclosure

Operating Temperature

  • -30 °C to 70 °C (-22 °F to 158 °F)
  • Modem Op Temp: -40 °C to 85 °C (-40 °F to 185 °F)

Pulse Input Parameters

  • 50% duty cycle at a maximum frequency of 5 Hz (200msec period)
  • max=25 VDC, greater than or equal to 4 VDC is a pulse high, less than or equal to 1.6 VDC is a pulse low

Battery Backup

  • 12 V, rechargeable sealed lead acid battery, 12-hour minimum

Power Supply

  • 100-240 VAC to 13.8 VDC, 50-60Hz, 1.9A, DIN-rail mounted, UL-rated

Modes

  • Run Mode: Average is 50 mA @ 15 VDC. Max is 850 mA during CELL transmit

Humidity

  • 0-90% non-condensing @ +40 °C (+104 °F)

Serial Port

  • 1 RS485

Cellular Modem

  • LTE/CATM1 dual modem utilizing AT&T or Verizon

Analog Inputs

  • 4 capable of interfacing directly to 4- 20mA, 0-5V, 1-5V signals. Can be flowmeters to provide flow rate and total flow

Digital Inputs

  • 10 digital/pulse inputs 0-5Hz, dry contact, open collector or closure to ground with voltages up to 25 VDC.

Relay Outputs

  • 2 relay outputs 0.5A @ 125 VAC or 30 VDC for local control of local audio/visual devices or for controlling field devices such as pumps and valves.

Modbus I/O

  • 20 Modbus RTU read coil/input status channels. Performs like physical digital inputs
  • 30 Modbus RTU read holding/register channels. Performs like physical analog inputs
  • 8 Modbus RTU write coil digital channels. Performs as relay outputs

  • SCADA-like capabilities for mid-sized municipal, industrial and commercial water and wastewater applications
