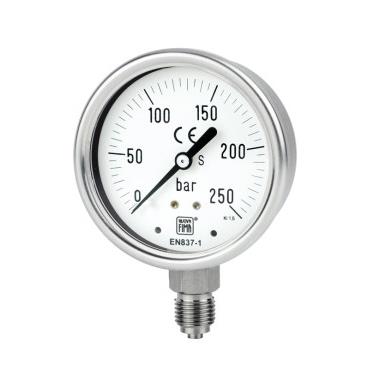

Nuova Fima Bourdon Tube Pressure Gauge, MGS18 DN63

MGS18 DN63 Bourdon Tube Pressure Gauge

Brand: Nuova Fima
Add Product to My Catalog

These instruments are built in conformity with the construction and safety S2 specifications of EN 837-1.

These instruments are designed for use in chemical and petrochemical processing industries, and in conventional power plants, to measure gaseous or liquid media which do not have high viscosity or do not crystalize.

They are built to resist the most severe operating conditions created by the ambient environment and the process medium.

For use on power units, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines, chemical, petrochemical and refrigerating plants and on machines and equipment where pulsating pressures or mechanical vibrations are apparent, the liquid-filled version is recommended.

Specifications

Brand

Accuracy Class

  • 1.6 as Per EN 837-1

Ambient Temperature Range

  • -40° to +149° F (-40° to +65° C)
  • Filled Model: +32° to +149° F (0° to +65° C) with Glycerine Filling
  • Filled Model: -4° to +149° F (-20° to +65° C) with Glycerine Filling Mixture
  • Filled Model: -40° to +149° F (-40° to +65° C) with Silicon Oil Filling

Bourdon Tube

  • AISI 316L Stainless Steel

Case

  • Stainless Steel

Damping Liquid

  • Filled Model: Glycerine 98 % or Silicon Oil

Design

  • EN 837-1

Dial

  • Plastic White with Black Markings

IP Protection Rating

  • Fillable, Filled Model: IP67 as Per EN 60529 / IEC 529
  • IP55 as Per EN 60529 / IEC 529

Movement

  • Stainless Steel

Over Pressure Limit (15 Minutes Maximum)

  • 10 % of Full Scale Value for Pressure Ranges over 9000 psi (600 bar)
  • 15 % of Full Scale Value for Pressure Ranges 1500 to 9000 psi (100 to 600 bar)
  • 25 % of Full Scale Value for Pressure Ranges ≤ 1500 psi (100 bar)

Pointer

  • Adjustable, Aluminum, Black
  • Fillable Model: Not Adjustable, Aluminum, Black

Process Fluid Temperature

  • Filled Model: Max.
  • Maximum

Ranges

  • From 0 to 15 to 0 to 15000 psi, (From 0 to 1 to 0 to 1000 bar), (or Other Equivalent Units)

Ring

  • Fillable, Filled Model: Stainless Steel, Crimped
  • Stainless Steel, Bayonet Lock

Safety Designation

  • Fillable, Fiiled Model: S2 as Per EN 837-1
  • S1 as Per EN 837-1

Socket Material

  • AISI 316L Stainless Steel

Thermal Drift

  • ± 0.4 % / 10° C of Range (Starting from 68° F / 20° C)

Window Material

  • Polycarbonate

Working Pressure

  • 66 % of Full Scale Value for Pulsating Pressure
  • 75 % of Full Scale Value for Static Pressure
