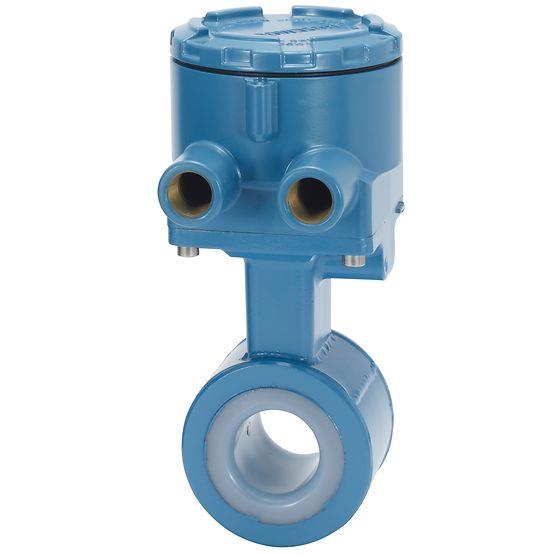

Rosemount Wafer Magnetic Flowmeter Sensor, 8711

8711 Wafer Magnetic Flowmeter Sensor

Brand: Rosemount
Add Product to My Catalog

Rosemount Wafer Magnetic Flowmeter Sensor, 8711 Rosemount Wafer Magnetic Flowmeter Sensor, 8711
The flangeless design of the Rosemount 8711 Wafer Magnetic Flow Meter Sensor makes it an economical, compact and lightweight alternative to flanged magnetic flowmeters.

Choose from a wide range of rugged liner and electrode material options compatible with virtually all applications, from highly corrosive liquids to fibrous slurries often considered difficult to measure with other devices.

For easy installation, alignment spacer kits are provided with every 8711 meter to center the sensor in the process line.
Features
  • Cut costs with a flangeless construction for minimum size and weight
  • Compact shape is ideal for installation in locations with limited amount of straight run pipe
  • Suit any process application with available rugged liner options and standard, grounding and bullet-nose electrodes
  • Simplify installation with a lightweight, flangeless design
  • Eliminate gaskets and prevent moisture ingress with an all-welded sensor
  • Minimize maintenance and repair with an obstructionless design featuring no moving parts
  • Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field

Specifications

Brand

Accuracy

  • 0.25 % over 40:1 Flow Turndow
  • Up to 0.15 % of Volumetric Flow Rate over 13: 1 Flow Turndown

Approvals & Certifications

  • ATEX
  • CE
  • FM
  • GOST
  • IECEx
  • INMETRO
  • NEPSI

Materials of Construction

  • Electrode: 316L Stainless Steel
  • Electrode: 80 % Platinum - 20 % Iridium
  • Electrode: Nickel Alloy 276
  • Electrode: Tantalum
  • Electrode: Titanium
  • Expanded Line: ETFE
  • Expanded Line: PFA
  • Lining: PTFE

Process Connection Style

  • Flange Rating: ASME B16.5 Class 150/300, DIN PN 10/40

Size

  • Expanded Line Size, 0.15” (4 mm)
  • Expanded Line Size, 0.3” (8 mm)
  • Line Size: 0.5” to 8” (15 to 200 mm)
