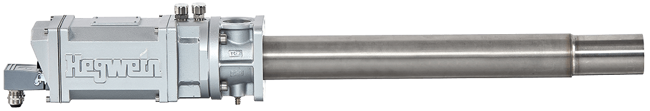

Hegwein 300 kW Oil Fired Igniter
Brand: DuragFor the ignition of large oil or heavy fuel oil fired burners in utility boilers.
Features- Compact design with integrated ignition module and ionization flame monitor/ burner control
- Built-in flame rod, ideally located
- No high-voltage cable required on site
- Guaranteed electromagnetic compatibility
- Rugged, low-maintenance design
- Outer tube lengths available in 10-mm increments
- For extra light fuel oil (diesel)
- Extremely concentrated and long pilot flame - typically no automatic retraction system required
- Class 1, 2 or 3 igniters according to NFPA also available
- Smoke free flame
- Also available for special marine diesel operation
Specifications
Brand
Ambient Temperature Range
- -30° to 60° C (-22° to 140° F)
Applications
- Ignition of Large Oil or Heavy Fuel Oil Fired Burners in Utility Boilers
Approvals & Certifications
- FM
Approvals & Certifications
- AGA
- Class 1, 2 or 3 Igniters According to NFPA
BSP Connection
- 1/4” BSPP Female
- 1-1/2” BSPP Female
- 3/8” BSPP Female
Diameter
- Outer Tube: 2.75” (70 mm)
Electrical Rating
- Ignition: 2 x 7.5 kV Ignition Electrode Against Ignition Electrode
Environmental Protection
- IP54
- IP65
Flow Rate
- Oil Volume: 25 kg/hour, Max.
- Oil Volume: Max.
Length
- Flame Length: 29.53” (750 mm) - Max.
- Outer Tube Length L: 9.45 to 196.9” (240 to 5,000 mm)
Media
- Oil
Operating Pressure
- Air - ≥ psig: 51.13 (kPa: 352.5, Mbarg: 25) Depending on the Outer Tube Length
Pressure Range
- Atomising Air, Oil: psi: 58.02 (kPa: 400, barg: 4) - Max.
Process Temperature
- Oil: 20° C (68° F)
Rotation
- Air Port: Rotatable 4 x 90°
