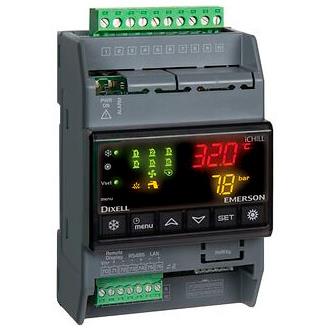

IC200 EVO
Brand: Dixell
IC200 evo is the iCHILL evolution series of controllers, dedicated to chiller and heat pump units.
Compactness, extreme flexibility, driver control for the electronic expansion valves and advanced functions such as free cooling and sanitary hot water production are only some of the main elements that make the series complete and suitable for the majority of plants.
Controlled units can be single or dual circuit with up to 6 compressors such as: air/air, air/water, water/water, motor-condensing, geothermal heat pumps and dryers.
Features- Management of scroll, screw and inverter compressors
- Identification of the compressors to activate based on the n° of hours/start-ups
- Data logger up to 100 alarms (alarm type, date, hours, machine status)
- Pump-down function (stop and start)
- Capacity function of machine power during critical functioning conditions
- Forced defrost during critical conditions
- Combined defrost temperature/pressure
- Sanitary hot water production
- Solar panel management
- Dynamic set point
- Heat recovery management
- Free-cooling management
Specifications
Brand
Container
- ABS self-extinguishing
Connections
- Format CX: pre-assembled wiring for inputs and outputs
- Format D: pre-assembled wiring for inputs and outputs. Extractable c-Clamps for relay outputs, RS-485 connection, keyboard connection and LAN
Absorbed Power
- 10 VA max
Data Maintenance
- On non-volatile storage (EEPROM)
Action Type
- 1B
Software Class
- A
Operating Temperature
- -10-55° C
Storage Temperature
- -30-85° C
Relative Humidity
- 20-85 % Non-Condensing
Measuring and Regulation Range
- NTC: -50-110° C resolution 0.1° C
- PTC: -50-150° C resolution 0.1° C
- 0..5 V/4..20 mA 0-50 bar resolution 0.1 bar
