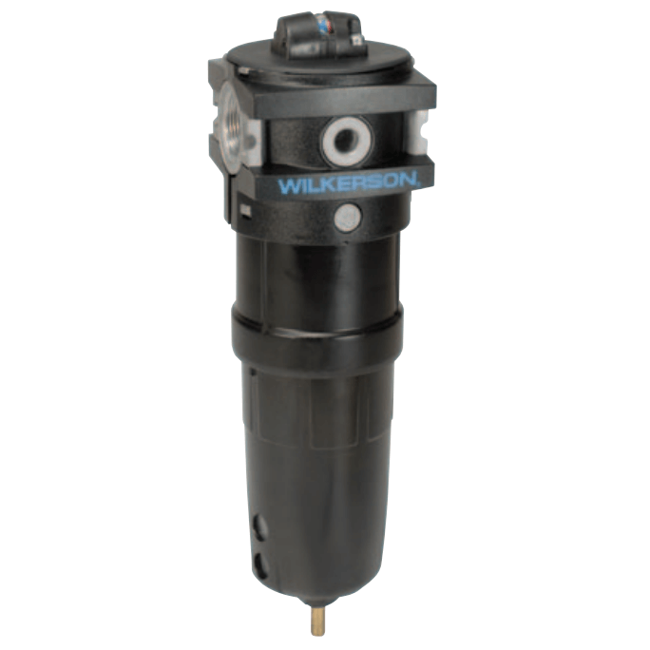

M90 Series Coalescing Filter
Brand: Wilkerson Corporation
Features
- Extended high efficiency filter element provides greater filtration surface area
- Integral 3/4" or 1" ports (BSPP & NPT)
- Removal of liquid aerosols and sub micron particles
- Oil free air for critical applications, such as air gauging, pneumatic instrumentation and control
- Adsorber activated carbon element removes oil vapors and most hydrocarbons
- Robust but lightweight aluminum construction
Notes: To optimize the life of the coalescing element, it is advisable to install a F90 pre-filter with a 5 micron element upstream of the coalescing filter. To optimize the life of the adsorber element, it is advisable to install a 90 Series coalescing 0.01 micron filter upstream of the adsorber filter.
1 - 12 of 16 Part Numbers
.png)
M90-06-CH00
- Thread Type - NPT
- Port Size - 3/4"
- Element - 0.01 Micron Element with DPI
- Bowl / Drain Type - Metal Bowl / Sight Gauge & Auto Drain
M90-06-CL00
- Thread Type - NPT
- Port Size - 3/4"
- Element - 0.01 Micron Element with DPI
- Bowl / Drain Type - Metal Bowl / Sight Gauge / Manual & Semi Auto Drain
M90-06-DH00
- Thread Type - NPT
- Port Size - 3/4"
- Element - Adsorber
- Bowl / Drain Type - Metal Bowl / Sight Gauge & Auto Drain
M90-06-DL00
- Thread Type - NPT
- Port Size - 3/4"
- Element - Adsorber
- Bowl / Drain Type - Metal Bowl / Sight Gauge / Manual & Semi Auto Drain
M90-08-CH00
- Thread Type - NPT
- Port Size - 1"
- Element - 0.01 Micron Element with DPI
- Bowl / Drain Type - Metal Bowl / Sight Gauge & Auto Drain
M90-08-CL00
- Thread Type - NPT
- Port Size - 1"
- Element - 0.01 Micron Element with DPI
- Bowl / Drain Type - Metal Bowl / Sight Gauge / Manual & Semi Auto Drain
M90-08-DH00
- Thread Type - NPT
- Port Size - 1"
- Element - Adsorber
- Bowl / Drain Type - Metal Bowl / Sight Gauge & Auto Drain
M90-08-DL00
- Thread Type - NPT
- Port Size - 1"
- Element - Adsorber
- Bowl / Drain Type - Metal Bowl / Sight Gauge / Manual & Semi Auto Drain
M90-C6-CH00
- Thread Type - BSPP
- Port Size - 3/4"
- Element - 0.01 Micron Element with DPI
- Bowl / Drain Type - Metal Bowl / Sight Gauge & Auto Drain
M90-C6-CL00
- Thread Type - BSPP
- Port Size - 3/4"
- Element - 0.01 Micron Element with DPI
- Bowl / Drain Type - Metal Bowl / Sight Gauge / Manual & Semi Auto Drain
M90-C6-DH00
- Thread Type - BSPP
- Port Size - 3/4"
- Element - Adsorber
- Bowl / Drain Type - Metal Bowl / Sight Gauge & Auto Drain
M90-C6-DL00
- Thread Type - BSPP
- Port Size - 3/4"
- Element - Adsorber
- Bowl / Drain Type - Metal Bowl / Sight Gauge / Manual & Semi Auto Drain
1 - 12 of 16 Part Numbers
Specifications
Brand
Flow Capacity
- 3/4”: 275 scfm
- 1”: 307 scfm
Maximum Supply Pressure (All Models)
- 254 psig (17.5 bar)
Operating Temperature
- Coalescing filter 0.01 micron, 3/4” Combined manual / semi-Auto drain: 14° to 140° F (-10° to 60° C)
- Coalescing filter 0.01 micron, 3/4” Auto drain: 14° to 140° F (-10° to 60° C)
- Coalescing filter 0.01 micron, 1” Combined manual / semi-Auto drain: 14° to 140° F (-10° to 60° C)
- Coalescing filter 0.01 micron, 1” Auto drain: 14° to 140° F (-10° to 60° C)
Bowl Capacity (All Models)
- 130 cm³ (4.4 oz.)
Height x Width x Depth
- 13.4 x 3.5 x 3.7 in (130 x 340 x 90 mm)
Weight
- 3.5 lb (1.6 kg)
