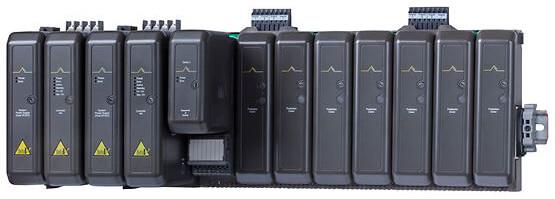

DeltaV™ M-Series Sequence of Events Card

Brand: DeltaV

The DeltaV™ Sequence of Events Card provides a means of recording the events associated with a process upset by using highly accurate time stamps to determine the precise order in which they occurred.

The Sequence of Events Card captures process-upset events close to the source for fast recording and provides increased resolution of timestamps for more accurate event sequencing.
Features
  • Captures process-upset events close to the source for faster recording.
  • Provides increased resolution of timestamps for more accurate event sequencing.
  • Easily integrates data with desktop applications for detailed analysis and reporting.

Specifications

Brand

Field Circuit Power Per Card

  • 75 mA at 24 Vdc (+ 10 %)

Field Circuit Voltage

  • 24 Vdc

Input Impedance

  • 5K ohm (Approximatelyimate)

Isolation

  • Each Channel is Optically Isolated from the System & Factory Tested to 1500 Vdc

LocalBus Current (12 Vdc Nominal)

  • 50 mA Typical, 75 mA - Max.

Number of Channels

  • 16. Each Channel Can be Configured for DI or SOE Operation

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Relative Humidity

  • 5 to 95 %, Non-Condensing

Scan Rate

  • 0.25 msec for All 16-Channels

Shock

  • 10 G1/2 - Sine Wave for 11 milliseconds

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Terminal Block

  • 32-screw Termination Block or 40-Pin Mass Termination Block

Time Stamp Accuracy

  • 0.25 millisecond on a Card, 1 millisecond in a Controller. Accuracy with Reference to System Clock Time after a 4 millisecond Debounce Filter has been applied

Vibration

  • 1 mm Peak-to-Peak from 5 Hz to 16 Hz, 0.5 G from 16 Hz to 150 Hz
