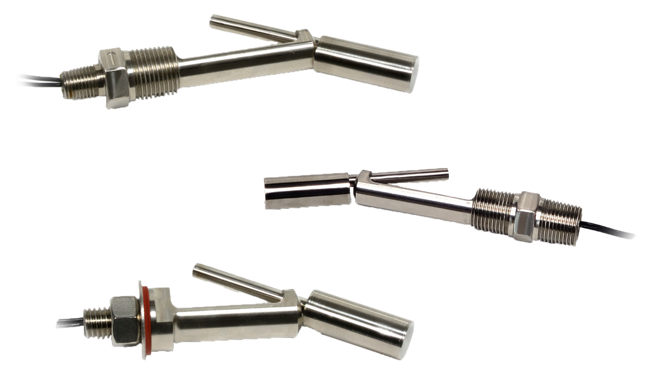

Stainless Steel Horizontal Float Switches Series: FS-500

Brand: Automation Products Group - APG
Add Product to My Catalog

Series FS-500 Stainless Steel Horizontal Float Switches are durable, versatile float switches with a wide range of usage and applications. Three fitting configurations and two temperature ranges, all carrying NSF 169 and CSA approvals, make the Series FS-500 an easy choice for OEM, water and wastewater, and chemical applications. With their compact size, all stainless steel wetted materials, and reversible switch orientation, FS-500 switches are go anywhere, use-everywhere switches.

Three Mounting Options
Choose from dual 1/2" NPTMs, 1/2" NPTM and 1/4" NPTM, or Bulkhead mount with 1/2 - 13 threads.

CSA and NSF Approvals
Standard Temperature, dual-NPTM mount switches are CSA Explosion Proof, while all Bulkhead mount switches and all High Temperature models are approved for General Use. Every FS-500 is NSF 169.


100W Switching Capacity
FS-500 switches are rated for 100W resistive loads, at up to 120 VDC or 240 VAC.
Features
  • Compact size
  • Reliability/long switch life
  • Shock resistive construction
  • Can be used in a wide range of liquids
  • Operating temperatures up to 500° F (260° C)
  • Switch rated for 100 W
  • NSF 169 certified
  • CSA Explosion Proof (Standard Temp) and General Use (High Temp)



View_Details

Specifications

Brand

Actuation Angle

  • 10° ± 3°

Approvals

  • CSA: Stnd Temp Dual NPTM
  • CSA: High Temp Dual NPTM
  • CSA: Bulkhead
  • Single Seal
  • NSF 169

Bulkhead Gasket

  • Silicon

Enclosure Rating

  • NEMA 4X (Dual NPTM only)

Float Materials

  • 316L Stainless Steel

Hysteresis

  • 8° ± 1°

Max Current (AC, 50/60 Hz)

  • 0.416 A @ 240 VAC
  • 0.833 A @ 120 VAC
  • 1 A @ ≤ 100 VAC

Max Current (DC)

  • 0.833 A @ 120 VDC
  • 1 A @ ≤ 100 VDC

Mount & Stem Materials

  • 316L Stainless Steel

Operating Temperature

  • Standard: -40° to 368° F (-40° to 187° C)
  • High Temp: -40° to 500° F (-40° to 260° C)

Pressure Rating

  • 300 psi (20.7 bar)
  • 100 psi (6.9 bar)

Specific Gravity

  • Minimum 0.6

Switch Points

  • 1 NO/NC
  • Customer Reversible

Switch Rating

  • 100 W (resistive load only)

  • C I, D1 Hazardous Locations
  • Food / Beverage
  • Chemical
  • Water / Wastewater

Documentation

Certificate

Data Sheet

Product Catalog

Product Manual
