Pribusin Ethernet Remote Control Signal Interface, RCI-800-NET

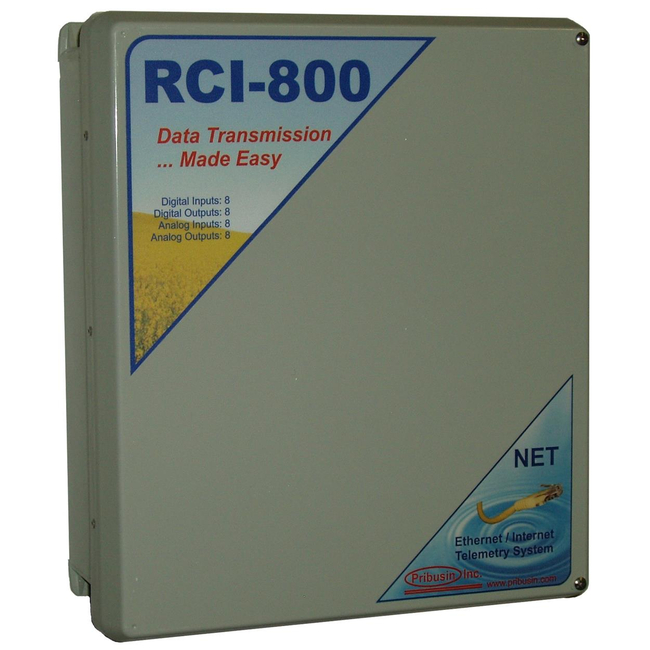

RCI-800-NET Ethernet Remote Control Signal Interface

Brand: Pribusin, Inc
Add Product to My Catalog

The RCI-800-NET is a bi-directional remote communication system that exchanges the status of 8 dry contact inputs and 8 analog inputs between a master and remote unit.

A basic system consists of one master station and one remote station each with 8 dry contact and 8 analog inputs and 8 'C' relay contact and analog outputs.
Features
  • Bi-directional Communication using Ethernet/Internet
  • Point-to-Point Operation
  • 8 Dry Contacts and 8 Analog Inputs
  • 8 'C' Relay Contacts and 8 Analog Outputs
  • No Calibration Required Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24 VDC)
  • High Noise Rejection

Specifications

Brand

Enclosure

  • NEMA 4X (NEMA 12 Available as an Option)

Operating Temperature

  • -20° to +50° C

Power

  • 117 Vac, 60/50 Hz, 24 Vdc Available

Relay Contacts

  • 10 A 1/8 hp at 125 Vac
  • 6 A 1/8 hp at 277 Vac

Transmission Medium

  • 10/100 Ethernet, RJ45 Connection

Documentation

Data Sheets

Product Manuals
