Tri-Bolt Breakaway Hose®

Brand: Life Guard Technology

LifeGuard Technologies is formed to take the next steps by providing, on a geographical basis, reliable, readily deployable and cost effective improvements in industrial safety.

As the name declares we are a Global Company that is based upon the extensive experience of its founders and joint venture partners and believes that significant and measurable enhancements to industrial safety are achieved with deployment of “passive devices”.

The essence of our mission is to increase the safety of all operations and facilities through the deployment of highly safe systems thru advancements on existing technology.

We have completed developed two advancements on the Smart-Hose technology that we previously invented.

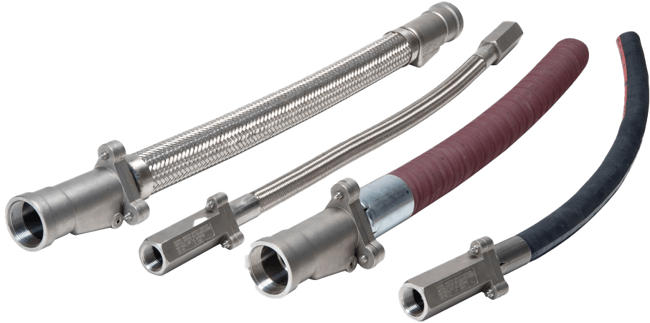

The new technology, known as the Tri-Bolt Breakaway Hose, combines a similar safety concept to the Smart-Hose technology that we invented but with a more advanced internal spring system and with a Breakaway design .

1 - 4 of 4 Part Numbers
BH22-004-11-0120
BH22-004-11-0120
Tri-Bolt Breakaway Safety Hose
BH22 - Designates metal hose (316 S/S core with double braided 304 S/S covering) 3500 PSI
004 - Designates size ( in this case ½” ID)
11 - Designates material 316 S/S fitting (in this case ½” NPT female threads)
0120 - Designates length in inches (in this case 120 inches or 10 feet)
IR01-004-15-0000
IR01-004-15-0000
Tri-Bolt Breakaway Safety Hose
IR01 Designates type of hose (in this case LPG! 350 PSI
004 Designates size (in this case ½”)
15 Designates material 316 S/S fitting (in this case ½” NPT threads)
0000 Designates length in inches and in this case no length was given
TF06-002-11-003-S
TF06-002-11-003-S
Tri-Bolt Breakaway Safety Hose
TF06 - Designates tefon hose (6000 PSI WP)
002 - Size ¼” ID
11 - Designates material 316 S/S fitting (in this case ¼”) NPT female threads
0036 - Designates length in inches (in this case 36 inches or 3 feet)
S - Designates safety loop at each end of hose.
TZ51-02-17-0060
TZ51-02-17-0060
Tri-Bolt Breakaway Safety Hose
TZ51 Designates type of hose (in this case tefzel) 3500 PSI
002 Designates size (ID) in this case ¼”
17 Designates material brass (in this case ¼” NPT female threads
0060 Designates length in inches (in this case 60 inches or 5 feet)
1 - 4 of 4 Part Numbers

Specifications

Length

  • 18'
  • 20'
  • 25'
  • 30'
  • 40'
  • 50'
