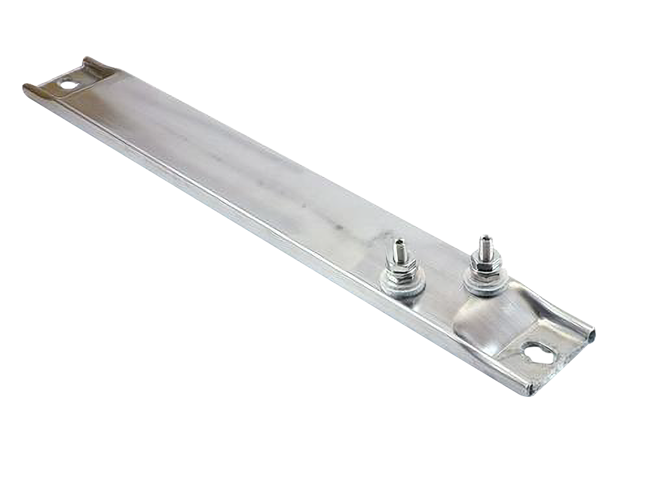

Ceramic Strip Heater
Brand: Backer Marathon IncBacker Marathon ceramic strip heaters offer high temperature performance in a rugged, contamination resistant stainless steel sheath. They are bolt-in replacements for Chromalox, GE, Watlow, and other channel strip heaters.
They are available with a stainless steel sheath (for temperatures up to 1,200° F), with or without mounting tabs, and can be manufactured with post terminals or a variety of lead options.
Ceramic strip heaters are constructed with a using chromium resistance wire coil inside a ceramic core which is then inserted in a metal sheath and filled with magnesium oxide for maximum heat transfer. This construction provides the long life necessary for tough applications.
We have dozens of configurations of ceramic strip heaters in stock, available for same day delivery.
Features- Marathon Ceramic Strip Heaters offer high temperature performance in a rugged, contamination resistant stainless steel sheath
- They are bolt-in replacements for many of the Chromalox, GE, Watlow, and other strip heaters
- Pricing is included in the Marathon CD and price book
Specifications
Brand
Maximum Temperature
- 1,200° F
Sheath Material
- Stainless Steel
Max Watt Density
- 75 W/Linear Inch. 120 If 2 Sides in Contact With Heated Part
Maximum Wattage
- 120 W/Inch of Heated Length, 75 If Only One Side IS in Contact the Surface
Maximum Amps
- Leads: 12 A
- Terminals: 20 A
Maximum Voltage
- 300 V Standard, 480 V Special
Tolerance
- Wattage: +5%, -10%
- Resistance: +10%, -5%
