Accu-Pulse Pulsation Dampeners

Brand: Primary Fluid Systems Inc
Add Product to My Catalog

Accu-Pulse Pulsation Dampeners.png
Features
  • Increase System Efficiency and Pump Life
  • Decrease Maintenance and Costs
  • Protect Pipes, Meters, Valves, and Instrumentation From Pulsation and Vibration
  • Ensure Meter Accuracy, Longevity, and Repeatability
  • Reduce Pressure Fluctuations and Diaphragm Wear
  • Prevent Foaming and Splashing
  • CRN is Now Available on Certain Accu-Pulse Dampeners - Please Contact Factory for Price and Availability.
  • Accu-Pulse:
    • Lightweight and Compact Design
    • Sizes Available Between 4 Cubic Inch and 1155 Cubic Inch Capacity
    • Standard Models Pressure Rated to 150 and 300 PSIG
    • 3/8", 3/4" and 1" Pipe Connections for the 10 and 85 Cubic Inch Models
    • Available In 8 Materials of Construction, Including PP, PVC, CPVC, PVDF, 316 S/S, Alloy 20, Carbon Steel, and Hastelloy C
    • Bellows Material Available in 8 Materials, Including Neoprene, Buna-N, Hypalon, EPDM, Viton, Teflon, Santoprene, and Polyvinylchloride
    • 2 Year Warranty

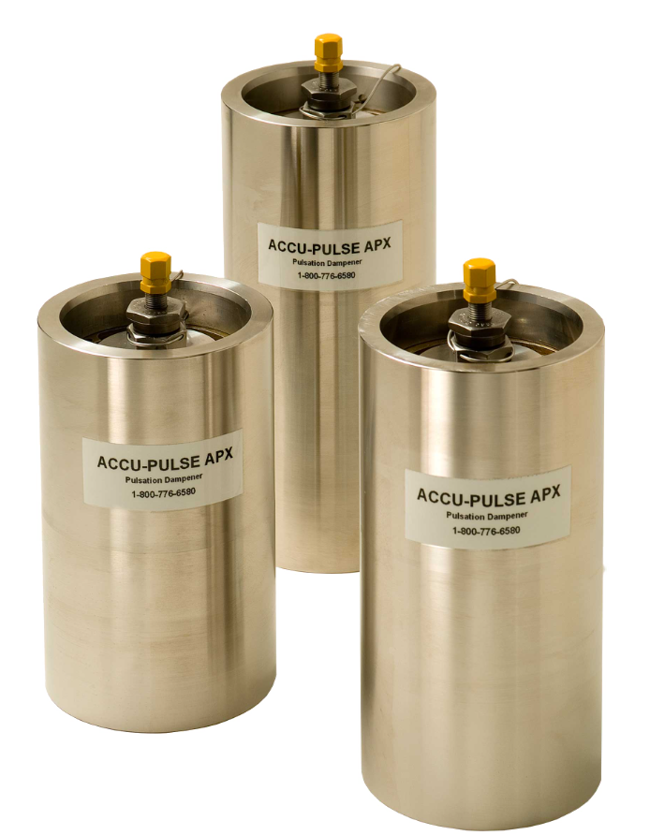

  • High Pressure Accu-Pulse APX:
    • Rugged 316L S/S Shell Casing
    • Standard Elastomers Are Nitrile: Buna-N , EPDM, and FPM - Viton; Other Elastomers Available
    • Available in 4 to 1,098 Cubic Inch Models:0.075L To 18L
    • Pressure Range to a Maximum of 2900 psi / 200 Bar, Dependent on Model
    • Larger Capacities and Higher Pressures Available Upon Request

View_Details

Specifications

Brand

Pressure

  • Standard 150/300 PSIG
  • High Pressure 1000/600 PSIG
  • High Pressure 4000 PSIG

Series

  • 10 cu in Capacity
  • 4 cu in Capacity
  • 85 cu in Capacity
  • 36 cu in Capacity
  • 370 cu in Capacity
  • 175 cu in Capacity
  • 1155 cu in Capacity
  • 8 cu in Capacity
  • 12 cu in Capacity
  • 16 cu in Capacity
  • 24 cu in Capacity

Body Material

  • Polypropylene
  • Polyvinylchoride
  • Polyvinyldene Fluoride
  • 316L Stainless Steel
  • Alloy 20
  • Hastelloy C
  • Carbon Steel
  • Chlorinated Polyvinyl Chloride

Bellows Material

  • Neoprene
  • Buna-N
  • Hypalon
  • EPDM - Nordel
  • Viton
  • Teflon
  • Santoprene

Size

  • 3/8” npt(f) Series I Standard Metal
  • 1/2” npt(f) Series I Standard Plastic
  • 3/4” npt(f) Series II Standard All
  • 1” npt(f) Series II
  • 2” Npt(f) series III
  • 3” Flanged Series IV
  • 4” Flanged Series IV

Optional Flanges

  • ANSI Flanges
  • BSPT Connection
  • DIN Flanges
  • Socketweld Connection

Documentation

Brochure

Datasheet

Manual
