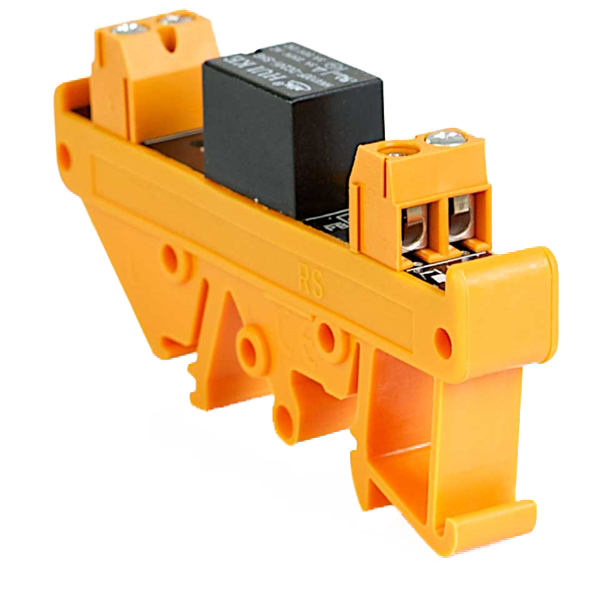

SIGNEXT-ERM Relay Module

Brand: Emphatec
Add Product to My Catalog

The SIGNEXT-ERM relay modules are compact, DIN rail mounted devices intended for use as interposing relays between PLC/DCS digital outputs and loads. Two versions are available - a 1 form A (normally open), 3 A rated and 1 form C (SPDT), 10 A rated. Both modules mount on 32 mm and 35 mm DIN rails. These modules were designed with price in mind. The relays are soldered to the PCB, not socket mounted, and the terminations accept 14 AWG maximum wires instead of 12 AWG. They are only available with a 24 Vdc coil. If you require a low cost, basic relay module then the SIGNEXT-ERM are the ideal choice.
Features
  • 1 form A and 1 form C versions available

  •  Intended for use with PLC and DCS 24 Vdc digital outputs

  •  Low cost, fit-for purpose design

  •  cULus listed

    • 1 - 1 of 1 Part Numbers
    SIGNEXT-ERM
    SIGNEXT-ERM
    • Electrical - Connectors - 1 Form C, 10 A
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Approvals & Certifications

    • UL (C,US), E334979

    Current

    • Coil: 20 mA - 330235
    • Coil: 8.5 mA - 330236
    • Contact: 10 A - 330235
    • Contact: 3 A - 330236

    Electrical Connectors

    • Width DIN Rail: 24 to 14 AWG (0.2 to 2.5 mm²), 0.4 Nm Torque

    Electrical Contacts

    • Normally Open

    Materials of Construction

    • Contact Material: Silver Alloy

    Mounting

    • DIN Rail

    Operating Temperature

    • -20° to 50° C (-4° to 122° F)

    Operating Time

    • Switching Time: 10 milliseconds - 330236
    • Switching Time: 15 milliseconds - 330235

    Release Time

    • Switching Time: 5 milliseconds - 330235, 330236

    Switch Type

    • SPDT

    Voltage

    • Coil: 18 Vdc Pick-Up - 330235, 330236
    • Coil: 24 Vdc Nominal - 330235, 330236
    • Coil: 3.5 Vdc Drop Out - 330235, 330236
    • Contact: 250 Vac
    • Contacts: 30 Vdc
