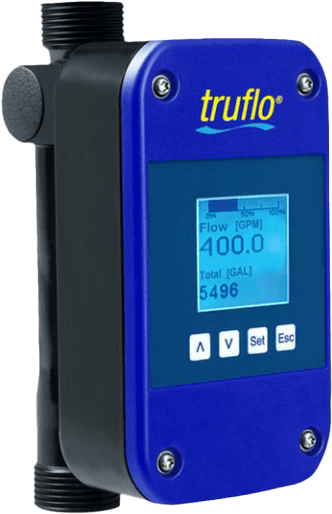

UltraFlo 4000 Ultrasonic Flow Meter
Brand: Truflo®The UltraFlo 4000 utilizes ultrasonic technology as is capable of measuring both conductive and non conductive liquids, It is an excellent chose for very corrosive liquids such as strong acids and alkalies.
The UltraFlo 4000 has no moving parts and has been engineered to measure pulsating, dosing as well as metering flow.
All parts that contact the liquid are made of corrosion resistant Polysulfone.
Features- Design to Measure Very Low Flow Rates
- Suitable for Dosing|Pulsating Flows
- PVC-CPVC True Union Ends (Optional)
- RS-485 Output | 4-20mA
- Display; Flow Rate + Totalizer
- 4-20mA Output + Pulse Relay
- IP67 Enclosure
- Negligible Pressure Drop
- Empty Pipe Alarm
Specifications
Brand
Material
- Polysulfone
Protection Class
- IP67
- NEMA 4X
Medium Temperature
- 14° F to 176° F
- -10° C to 80° C
Maximum Pressure
- 145 psi
- 10 bar
Outside Thread Size
- 1/2”
- 3/4”
- 1”
- 1-1/4”
Power Supply
- 24 Vdc 3.6W
Output
- 4-20 mA + Pulse Relay
- RS-485
