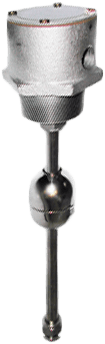

7014 UniFloat Float Switch

Brand: Drexelbrook

The B/W Unifloat float switch is a level sensing system developed especially to permit simple, low-cost installation and ease of adjustment in service for a broad range of applications requiring accurate multiple function/multiple level control of any type of liquid.

The unique design of the patented Unifloat features a Latching Reed Switch that eliminates the need for multiple floats to indicate various switch points.

The B/W Controls UnifFloat float switch is available in two styles: one lead with grounded contact or two leads with isolated contact.

Both styles offer a latching reed switch for greater flexibility and can be used with all the B/W control relays and control panels. The isolated contact design can directly interface to programmable controllers.

Specifications

Brand

Output:

  • Type C or Type I Reed Switch

Material of Construction

  • 316 Stainless Steel

Number of Switch Points

  • Up to 12

Maximum Length of Guide Tube

  • Up to 20 ft

Operating Temperature

  • 0° to 250° F

Operating Pressure

  • Vacuum to 14.7 psi

Applicable to Clean Liquids for High or Low Level Indication, Pump Control, and Stop Fill on Storage Vessels.
