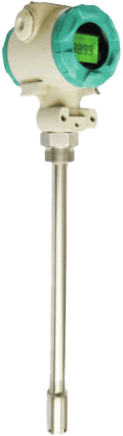

Liquid Level Transmitter is constructed by using all sealing isolated diaphragm & oil-filled level sensor and special electrical circuit.

This ULB3 model is featured with high measuring accuracy, good stability, long life, and easy installation etc.

It uses unique craft sealing structure, has good performance against leakage, and reliable operation of submerging liquid for a long time.

According to three mathematical model relations of the measured liquid's intensity, density, and level, through the level transducer to measure the fluid's pressure which is proportional to fluid's depth, and transforms its signal to standard 4~20 mA electric current signal (or standard voltage signal) through its amplifying circuit.

ULB3 liquid level transmitter is easy to be installed.
Features
  • Measuring range:0 ~ 0.5...3 mH₂O
  • All metal armoring type, 316L stainless steel isolated diaphragm
  • Solid sealing, good anti-corrosive ability
  • Unique design against condensation and anti-radar
  • High accuracy, high reliability, anti jamming, good long-term stability

Specifications

Pressure Medium

  • Liquid Compatible with Stainless Steel

Measuring Ranges

  • 0 ~ 0.5...3 mH₂O

Overload

  • 200 % Full Scale

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale (Standard)

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Long-Term Stability

  • < 0.2 % Full Scale/year

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • 0° ~ 60° C

Operating Temperature Range

  • -40° to 100° C

Measuring Media Temperature Range

  • -40° to 100° C

Temperature Coefficient of Zero

  • 0.25 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.25 % Full Scale/10° C

Insulation Resistance

  • 100 MΩ @ 50 Vdc

Process Connection

  • M30 x 1.5 or others

Protection

  • IP68

Explosive-Proof

  • Exia II CT6

Material of Pressure Membrane

  • 316L Stainless Steel

Material of Housing

  • Stainless Steel and Aluminum Alloy

  • This Liquid Level Transmitter is Widely used for Level Measurement (Static or Dynamic Level) in the Water Factory, Refinery Factory, Chemical Plant, Glass Factory, Sewage Treatment Plant etc.
