TIM Insertion Paddle Wheel Flow Meter

Brand: Truflo®

The TIM Series digital paddle wheel flow meter has been designed for tough industrial applications.

The TIM series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids.

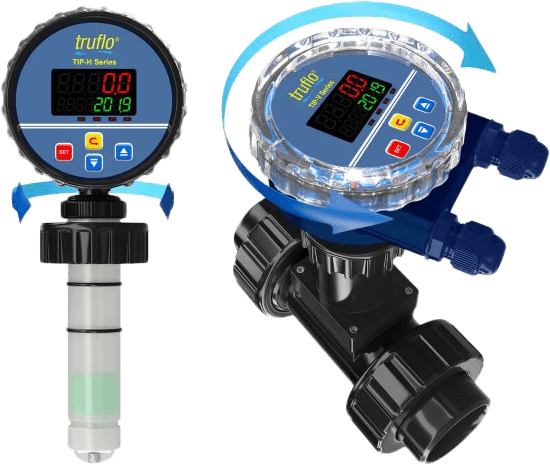

The plastic insertion flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a 4-20mA output.

The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate chemical flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings.

The TIM series liquid flow meter, is industry’s longest lasting plastic flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIM insertion paddle wheel flow meter is available in PVC, PP and PVDF.

The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings.

Icon’s complete line of insertion paddle wheel chemical flow meters will also retrofit into any Signet® style fitting.

Features

4-20mA Output
2 Orientations: TIM-H | TIM-V
Bright LED Display | Flow Rate | Total
Life-Time Warranty on Paddle Assembly
Industry’s Highest Accuracy: +/- 0.5%
Chemical Resistant Materials: PVC, PP, PVDF
Tefzel® Paddle Wheel
Zirconium Ceramic Rotor & Bushings
Retrofits into Signet® Fittings
