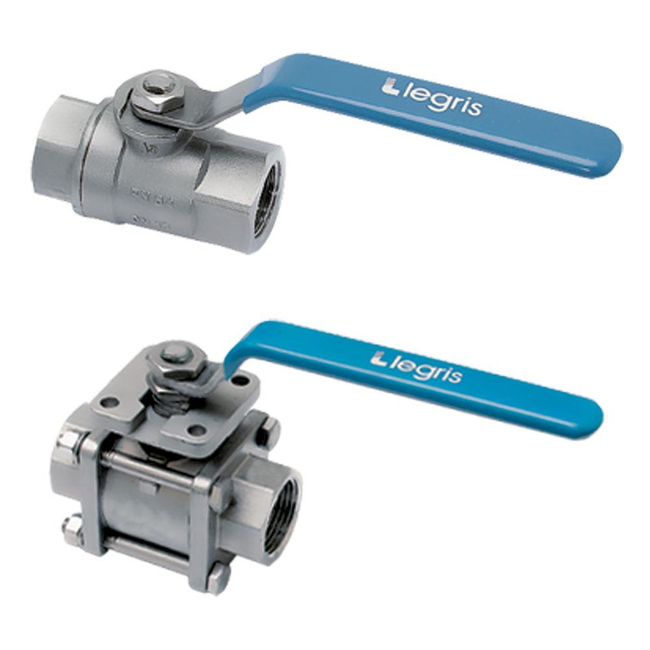

Ball Valves Stainless Steel Series

Ball Valves Stainless Steel Series

Brand: Legris - by Parker
Add Product to My Catalog

Stainless steel series ball valves can withstand corrosive fluids and environments.

With full flow, high pressure and temperature capabilities, these valves are suitable for many applications.
Features
Reliability
  • Full flow
  • Excellent chemical compatibility
  • Ligh resistance to pressure/temperature
  • Light series version: 100% leak-tested in production, date coding to guarantee quality and traceability
Versatility
  • Three in-line versions:
    • One-piece: cannot be disassembled
    • 3-piece: easily disassembled for maintenance and cleaning
    • Light Series: for maximum compactness
  • Fixing plate: 4812 and 4832
    • Through-bulkhead fitting
    • Pneumatic or electronic actuation (ISO 5211 standard)

View_Details

Specifications

Brand

Handle Type

  • Stainless Steel
  • Chemical Nickel-Plated Brass

Media

  • All Fluids

Product Type

  • Stainless Steel Series

Applications

  • Pharmaceutical
  • Laboratories
  • Petrochemical
  • Medical
  • Semiconductors
  • Chemical
  • Aviation
  • Food Process

Minimum Working Temperature

  • -20° C

Maximum Working Temperature

  • 120° to 150° C

Weight

  • 0.226 to 3.14 kg

Connection 1 Thread Style

  • BSPP

O-Ring Material

  • PTFE

Nominal Diameter

  • 4 to 50 mm

Specifications Met

  • RoHS
  • REACH

Gripping Ring Material

  • Stainless Steel

Stem Material

  • Stainless Steel

Nut Material

  • Stainless Steel

Quantity Per Box

  • 1 to 10

Stem Seal Material

  • PTFE

  • Allow/Stop Corrosive Fluid Circulation in Harsh Environment
  • Suitable for Low and High Temperatures

Documentation

Catalog

Compliance, Certifications & Safety

Literature And Reference Materials
