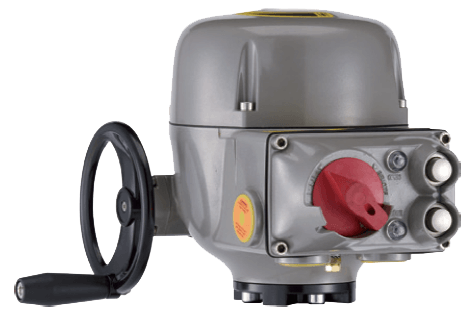

Keystone Electrical Actuators Model EPI-2, KEU Model

EPI-2 KEU Model

Brand: Keystone
Add Product to My Catalog

The EPI-2 Models are compact, intelligent quarter-turn electric actuators for the accurate control of valves with torques from 35 to 2000 Nm / 308 to 17,700 lb.in.

The EPI-2 is available in six sizes and is designed for on/off or modulating control of butterfly, ball, rotary plug valves or dampers in a wide range of heavy industrial, chemical and petrochemical plants on and offshore.

This product is not suitable for US market.
Features
  • Low or high voltage single phase DC or AC power supply with 3-phase option
  • Multiple adjustable stroking times to suit specific applications
  • Interchangeable base plate and range of shaft inserts enable simple connection to any valve type
  • Intelligent control unit prevents overheating
  • Epicyclical gearing ensures reliable and smooth operation
  • Top-mounted position indicator
  • Constantly-engaged, hand wheel-operated manual override in case of power failure
  • Bluetooth™ wireless connectivity for non-intrusive configuration, operation and diagnostics
  • Optional local control panel for manual valve operation with additional open/close indicator
  • Simple upgrade options for modulating control and network communication via DeviceNet or Profibus DP protocols
  • Latched-type output contacts for fully open/fully close remote indication. Output contacts for monitor and blinker/local selector indication are also available

View_Details

Specifications

Brand

Ambient Temperature Range

  • -25° to 70° C (-13° to 158° F)

Communication

  • Bluetooth

Conduit Connection

  • M25 / 1” NPT

Designed For

  • E006
  • E013
  • E025
  • E051
  • E091
  • E171

Enclosure Finish

  • Epoxy Powder-Coated

Enclosure, Body Material

  • Aluminum, Anodized

Environmental Protection

  • IP66
  • IP68
  • NEMA 4, 4X, 6 / IP66, 68M
  • NEMA 4X
  • NEMA 6

Operating Voltages

  • 1-Phase 100-240 Vac/Vdc
  • 1-Phase 24-48 Vac/Vdc
  • 3-Phases 208-240 Vac
  • 3-Phases 380-480 Vac
  • 3-Phases 500-575 Vac
