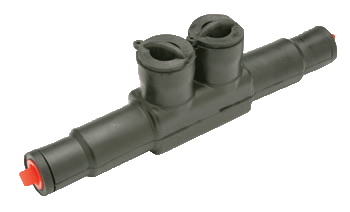

Underground Watertight In-Line Splice 12 AWG to 350 kcmil AL & CU

Brand: Penn Union

Features
  • Manufactured from high strength aluminum alloy and clear plated for low contact resistance and high conductivity
  • Insulated mechanical splice for repairing or splicing aluminum or copper conductors in direct burial applications
  • Pre-filled with oxide inhibitor
  • Accepts wide conductor range
  • Rated for 600V, 90°C applications
  • Meets specifications: ANSI 119.1, Western Underground Guide 2.5, ANSI 119.4 for Class A connectors, UL 486D

1 - 1 of 1 Part Numbers
ULS2-350
ULS2-350
Underground Watertight In-Line Splice 12 AWG to 350 kcmil AL & CU
1 - 1 of 1 Part Numbers

Specifications

Brand

Conductor Range

  • 12 AWG - 250 kcmil

Height

  • 2.48”

Width

  • 1.34”

Length

  • 8.09”
