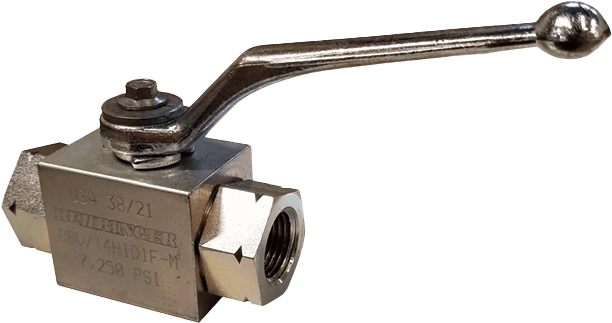

2-Way Ball Valve
Brand: Behringer Corporation- High-grade materials like steel, stainless steel or aluminium
- For pressures up to 1,500 bar (21,750 PSI)
- Optional pneumatic, electric or hydraulic actuator
- Position indicator, limit switch, proximity switch or locking device available
Threaded connector
- With DVGW-approval
- With removable centre
- With automatic pressure relief
- With additional miniature test point outlet
- As combination
- With spring-return and integrated check valve
- For support cylinder control with integrated, pilot-operated check valve or without check valve
- SAE or NPT Connections. BSP available upon Request.
Flange connection
- With SAE-flange connection
- With DIN-flange connection
Specifications
Brand
Material of Construction
- Carbon Steel, 316 Stainless Steel
Pressure Rating
- Up to 1,500 bar (21,750 psi)
Port Size
- 1/8” to 2”
Ball Seal
- POM
- PEEK
- PTFE
Temperature Range
- -20° to 215° F
