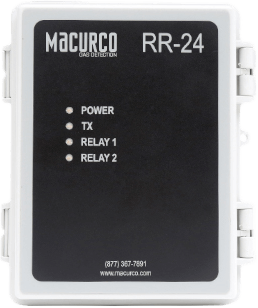

RR-24 Remote Relay
Brand: AerionicsThe RR-24 is a remote relay box that allows flexibility for applications needing more relays.
Using Modbus communication, you can control one or both SPDP onboard relays.
The RR-24 requires 24VDC to operate and can be used to engage or disengage other equipment such as fans, louvers, horns, strobes, gas valves, etc.
It was designed to be used with the Macurco DVP-1200 control panel but will also work with other Modbus communication systems.
NOTE: RR-24 is not a UL 2017 listed product and was not evaluated by Intertek in conjunction with the operation of DVP-1200.
Macurco RR-24 is not intended for use in hazardous locations.
Features- Modbus addressable relay
- Compatible with the Macurco DVP-1200 control panel
- Wall mount NEMA4X enclosure
- 2 – 10A SPDT dry contact relays
- 24 VDC input
- Status Indicators (LED): Power, communication, relay 1, relay 2
Specifications
Brand
Size
- 8.48” x 6.36” x 3.94” (21.5 x 16.1 x 10 cm)
Weight
- 12.2 lbs (5.5 kg)
Voltage/Current
- Power Input: 24 Vdc, 0.5 A
Operating Temperature
- 32° F to 104° F (0° C to 40° C)
Ambient Humidity
- 0 % to 95 % Relative Humidity Non-Condensing
Mounting
- Mounting holes in each corner
Relays
- 2 SPDT
- 250 Vac
- 10 A Max. (resistive)
Settings
- Dip Switch
Status Indicators
- LED: Power
- Communication
- Relay1
- Relay 2
Enclosure
- NEMA 4X rated
Warranty
- Two year limited warranty
- Parking garages
- Car dealerships
- Ambulance/firehouse bays
- Warehouses
- Manufacturing
- Loading docks
- Mechanical Rooms
- Distribution centers
- Vehicle repair facilities
- Bus depots
