FULFLO HT MULTI-CARTRIDGE FILTER VESSELS | CARBON STEEL, ASME CODE DESIGN FOR HIGH TEMPERATURE FILTRATION

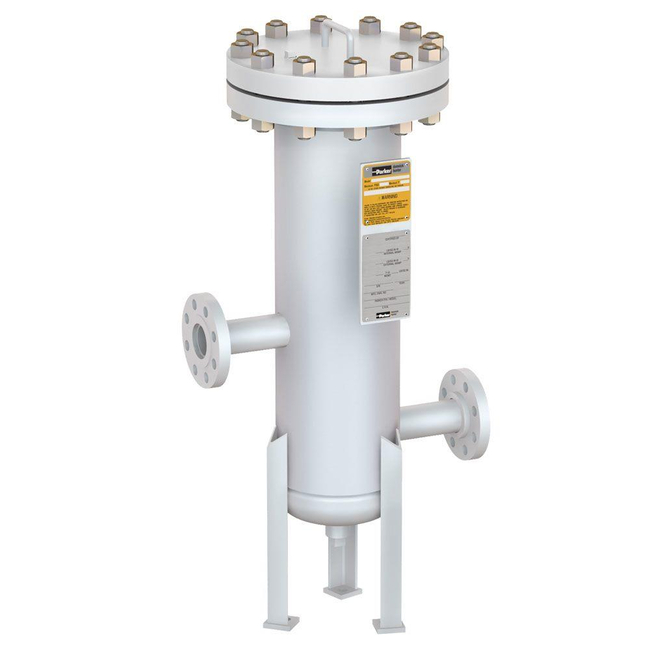

Fulflo HT Multi-Cartridge Filter Vessels | Carbon Steel, ASME Code Design for High Temperature Filtration

Brand: Parker Hannifin
Add Product to My Catalog

Fulflo® HT multi-cartridge filter vessels are specifically designed for filtration of high temperature heat transfer oils and other hot fluids.

All details of design, materials and construction of the HT vessel series conform to ASME code.

The HT series vessels are designed for use with double open end (DOE) and single open end (SOE) cartridges in 10, 20 and 30 inch lengths.
Features
  • ANSI blind flange closure for positive seal and common replacement gasket size
  • High temperature 304 SS spiral wound closure gasket with non-asbestos filler for use at elevated temperature and when fire safe non O-ring design is required
  • Modified silicone paint, suitable for high temperature, applied over sandblasted surface for exterior protection
  • Nickel plated bolting for corrosion resistance at high temperature
  • Cartridge top seats, guides and bottom seats made of 316 SS for corrosion resistance
  • Inlet and outlet nozzles extended 6 inches to allow for installation of protective insulation
  • Extruded nameplate so design information is visible after protective insulation is installed
  • Minimum pressure drop design
  • Designed & fabricated in accordance with ASME Boiler & Pressure Vessel code, U or UM stamp
  • Dual purpose cartridge seat for use with double open end and 2-222 O-ring single open end cartridges

Specifications

Brand

Filter Construction

  • Multi-Cartridge Filter Vessel

Flow Rate

  • 30 gpm, 60 gpm, 90 gpm

Function

  • Clarification

Industry Standards

  • ASME Sec. VIII, Div. 1, UM Stamp, ASME Sec. VIII, Div. 1, U Stamp

Markets

  • Industrial / Inks, Paints & Coatings

Maximum Operating Pressure (psi)

  • 122 psi (8.41 bar), 417 psi (28.7 bar)

Maximum Operating Temperature (°F)

  • 650° F

Media

  • Carbon Steel

Seal Material

  • Buna-N (250° F Max.)

  • Heat Transfer Oils
  • High Temperature Oils
  • Hot Fluids & Gases
