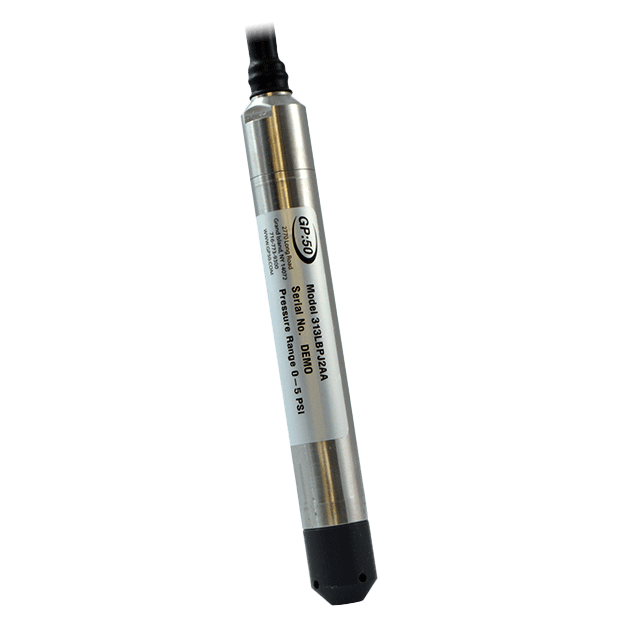

Model 313S Slim Submersible Level Transmitter
Brand: GP:50 New York Ltd
Features
- Output Signal: 4-20 mA
- Excitation Voltage: 8 to 36 Vdc
- Pressure Range: 0 to 20" wc, 0 to 300 psi, (0.05 to 35 bar, 0 to 2,068 kPa)
- Burst Pressure: 4 times FSO
- Proof Pressure: 2 times FSO
- Electrical Connections: Molded Hytrel jacket, 24 AWG, 8 feet long, 6 conductor with breather tube
- Process Connection: PVC Bullet Nose
- Temperature Range:
- Operating: -40° to 65.5°C (-40° to 150°F)
- Compensated: -32° to 60°C (0° to 140°F)
- Storage: -40° to 65.5°C (-40° to 150°F)
- Effect on Zero/Span: <±2.0% Full Scale Output at 100°F
- Static Accuracy: ±0.5%
- Materials of Construction:
- Housing: 316 Stainless Steel
Specifications
Brand
Accuracy
- ± 0.1 % of Full Scale Output
- ± 0.2 % of Full Scale Output
- ± 0.5 % of Full Scale Output
Burst Pressure
- 4 times Full Scale Output
Circuit Protection
- Short Circuit or Reversed Wired - Indefinite
Compensated Temperature
- -32° to 60° C (0° to 140° F)
Electrical Connectors
- Molded Hytrel Jacketed, 6-Conductor with Breather Tube, 24 AWG, 8 feet Long, Optional Lengths Available, Tefzel Jacketed Cable Optional
Enclosure, Body Material
- 316 Stainless Steel
Excitation Voltage
- 8-36 Vdc
Load Impedance
- 1400 ohms Max.
Maximum System Pressure
- 500 psi (1,153 feet WC)
Operating Temperature
- -40° to 65.5° C (-40° to 150° F)
Output
- 4-20 mA
Pressure Range
- bar: 0.05 to 35
- Inches WC: 0 to 20
- kPa: 0 to 3,447
- psi: 0 to 500
Proof Pressure
- 2 times Full Scale Output
Response Time
- ≤ 5 milliseconds to 90 %
Span & Zero Effect
- < ± 2.0 % of Full Scale Output at 38° C (100° F)
Storage Temperature
- -40° to 65° C (-40° to 150° F)
Zero Balance
- ± 1 % of Full Scale Output at 21.1° C (70° F)
