Fabri-Level Switch Components & Switch Kits
Brand: Gems Sensors, Inc
FABRI-LEVEL Switch Kits contain all components for complete assembly of a 1- or 2-station level switch unit for pipe-plug mounting in your tank.
Kits are available in several material and size combinations. Normally Open or Normally Close operation of the SPST switch is selectable by inverting the float(s) on the unit stem. Two 10" (254 mm) lengths of tube are furnished to space level stations as desired.

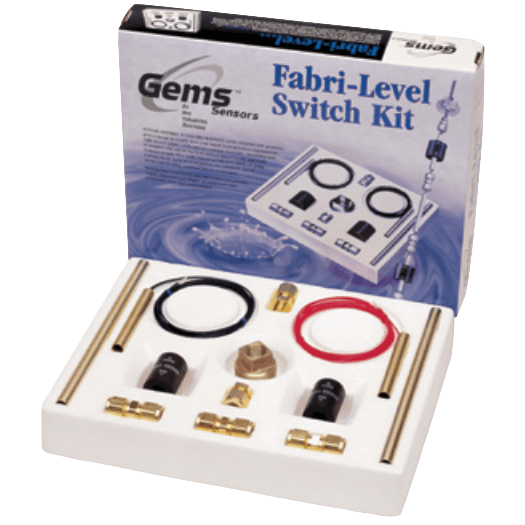

Each Kit contains: 1 tube connector, 1 mounting plug, 2 level stations (switch, tube, float), 2 extension tubes, 1 tube end fitting and 3 tube unions.
GEMS FABRI-LEVEL™ units can be custom-assembled in minutes from standard components, right in your plant. Simple instructions are furnished with kits.
Specifications
Brand
Approvals & Certifications
- CE
Electrical - Free Leads
- SPDT: 22 AWG, 60” Long, Teflon Wire Leads
- SPST: 18 AWG, 60” Long, Teflon Wire Leads
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 20 VA
Enclosure, Body Material
- Float: 316 Stainless Steel
- Float: Buna-N
Fluid Specific Gravity
- 0.55 to 0.75
Length
- 1/2” O.D. Tubing for Extending Units or Level Station Spacing: 10” (254 mm)
- 1/2” O.D. Tubing for Extending Units or Level Station Spacing: 36” (914.4 mm)
Materials of Construction
- Leadwire: Teflon
- Mounting, Tube & Fitting Material: 316 Stainless Steel
- Mounting, Tube & Fitting Material: Brass
Maximum System Pressure
- psi: 750 (kPa: 5,171, bar: 51.7)
NPT Connection
- 1/2” NPT Female
- Mounting Typical: 1-1/4” NPT Male
- Mounting Typical: 2” NPT Male
Operating Temperature - Sensor
- -40° to 135° C (-40° to 275° F)
Sensor / Probe Style
- Float
Switch Type
- SPDT
- SPST
Tube Connection
- 1/2” O.D. Tube
