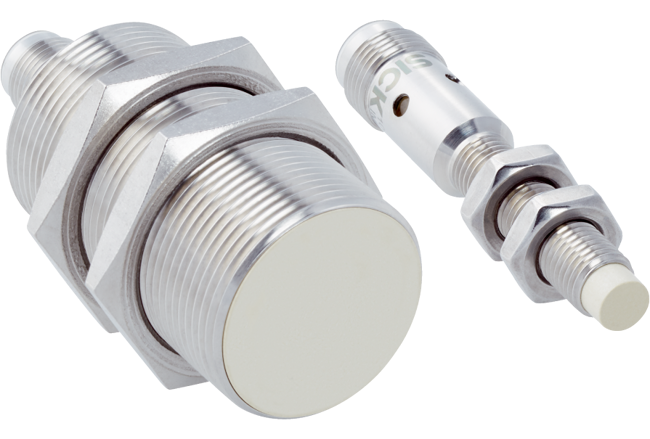

IMF Inductive Proximity Sensor
Brand: Sick AGThe IMF inductive proximity sensor is the new standard for reliability in the food industry. With its extended sensing ranges, made highly precise thanks to the use of SICK ASIC technology, the IMF ensures reliable, stable processes.
What's more, its wide-ranging specification limits allow the IMF to be used in all areas of food production: a huge benefit when it comes to product selection and warehousing.
The optical adjustment indicator saves time during commissioning and helps cut down on errors.
Communication via IO-Link is also possible, creating more flexibility and adding more functions for automation applications.
With an extensive standard product portfolio available, even special devices can be put into action quickly and easily.
Features- Reliable processes thanks to extended, highly accurate sensing ranges enabled through the use of SICK ASIC technology
- Reduced machine downtimes thanks to a longer service life, even when subjected to frequent cleaning cycles
- Quick and easy installation thanks to the optical adjustment indicator
- High degree of flexibility and communication options thanks to IO-Link
- Easy to implement customer-specific variants thanks to a modular concept
Specifications
Brand
Certifications & Approvals
- CE
- cULus
Housing
- Cylindrical Thread Design
Thread Size
- M30 x 1.5
- M18 x 1
- M12 x 1
- M8 x 1
Diameter
- Ø 8 to 30 mm
Sensing Range
- 2 to 20 mm
Housing Material
- Stainless Steel V4A
Enclosure Rating
- IP67
- IP69K
- IP68
Installation Type
- Quasi-flush
- Non-flush
- Flush
Communication Interface
- IO-Link
Connection Type
- Male Connector M12, 4-Pin
- Cable
Switching Output
- PNP
- NPN
