Testo 160 E - Wi-Fi Data Logger with 2 Connections for Temperature and Humidity Probe, Lux Probe, or UV Radiation and Lux Probe
Brand: TestoThe Testo 160 E is a part of the Testo 160 data logger family developed specifically for the needs of museums.
This system allows for the configuration of internal sensors and external probes, to match any monitoring situation in a museum or archival setting.
Document the environmental conditions of your artwork, such as temperature and humidity, or light and UV, with discrete external cable sensors placed at your exhibits or display cases.
The testo 160 E is a part of the testo 160 data logger family developed specifically for the needs of museums.
This system allows for the configuration of internal sensors and external probes, to match any monitoring situation in a museum or archival setting.
Operation and programming of the data logger is simple, and can be carried out directly via the Testo Cloud.
Monitoring Temperature, Humidity, Lux, and UV Radiation with the Testo 160 E Wi-Fi Data Logger
This logger is designed to serve all museum areas where monitoring must be performed unobtrusively, with easily hidden cable sensors.
The testo 160 E has two connection ports for any of three sensor probes; temperature and humidity, light level lux, or lux and UV probes are available.
The logger has an internal memory buffer to hold up to 40,000 readings that are offloaded to the Testo Cloud at preset intervals.
The lower and upper alarm settings can be individually set for each logger on the Cloud account, and when triggered, an alarm is immediately sent by email or optional text message.
The logger data is accessible at any time from any browser enabled device, such as a smart phone, tablet, or a PC or Mac.
The Testo 160 E Wi-Fi Data Logger – Unobtrusive and Easy to Hide

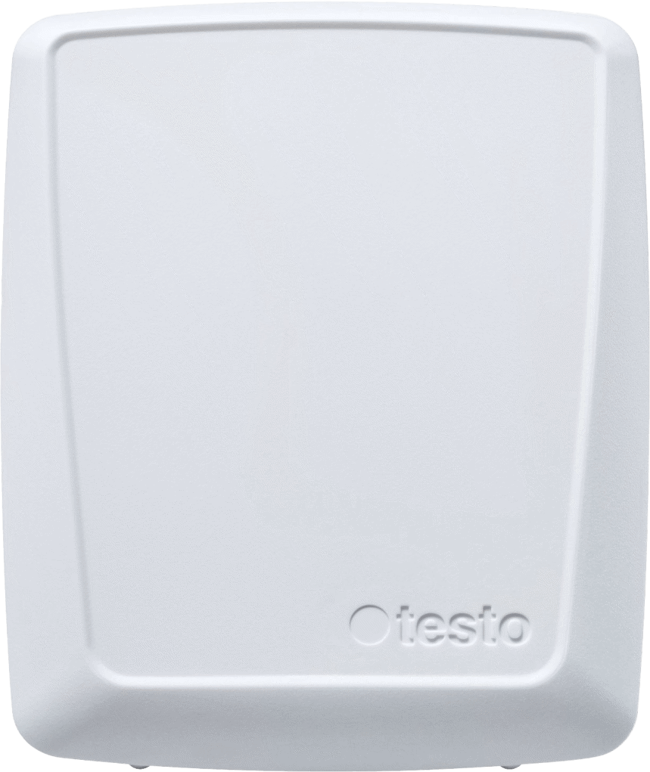

So as not to distract from your art exhibit, the testo 160 E logger was made small, about 2.5x3x0.9 inches.
To make it easy to conceal in an exhibit or a display case, an optional paintable deco cover is availabe to help the logger blend in with its surroundings.
A Perfect Network Appliance – Uses an Existing Wi-Fi Network to Send Data to the Testo Cloud
The Testo Cloud is a central data repository for all of your testo 160 E data loggers.
On your Testo Cloud account, you can configure data loggers and set alarm points, designate authorized users, and set recipients for alarms and monitoring reports.
To start, register at www.museum.saveris.net to gain access to your account. To register you can use a normal web browser.
Depending on your needs, you can select between the free Basic or subscription based Advanced functionalities as needed, to create 10 user accounts, or add text messaging of alarms, for example.
Museum, Archive, and Storage Applications for the Testo 160 E Wi-Fi Data Logger
By adding individual testo 160 E data loggers, one can build a system that reliably delivers data on your exhibit space, display cases, and storage environmental conditions.
The logger can be easily hidden at the base of a cabinet, while the tiny connected cable sensors are placed in the display area.
The small temperature and humidity sensor is perfect for monitoring the exhaustion rate of silica gel packets. The light level and UV monitoring sensor can be connected to the same testo 160 E logger.
Additional Functionality of the Testo 160 E Wi-Fi Logger
The logger comes with a large internal memory for 40,000 measurement values to protect your data, in case of a blackout or Wi-Fi network issues.
The logger housing has IP20 moisture protection, and uses readily available, standard alkaline batteries.
The batteries are monitored, and should last for about 12 months.
The logger can also be powered by an external USB power supply, and in such a case, the batteries will be used only during a loss of power.
Please Note:
To function, the testo 160 E needs to have at least one external probe plugged in. The external probes are available separately.
Features- Plug in up to two out of the three available probes
- Optional paintable logger cover helps conceal the logger in an exhibit
- Logger sends data to the Testo Cloud using your existing Wi-Fi network, alarms by email (Basic License), and optional text messages with the Advanced License
- Simple to install, integrate, and operate
Specifications
Brand
Delivery Scope
- Testo 160 E Wi-Fi Data Logger
- Includes Free Cloud Access (Basic License)
- Batteries (4 x AAA Alkaline)
- USB Cable
- Wall Bracket with Unlocking Key and Adhesive Strip
- QR Code Sticker
- Basic Instructions
Weight
- 3 oz. / 96 g
Dimensions
- 3 x 3 x 1 in. / 76 x 64 x 22 mm
Operating Temperature
- 14° F to 122° F / -10° C to +50° C
Protection Class
- IP20
Communication Rate
- Dependent on Cloud Licence, Basic: 15 min … 24 h / Advanced: 1 min … 24 h
WLAN Connectivity
- Supported Wireless LAN Standards: IEEE 802.11 b/g/n and IEEE 802.1X, Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP
Measuring Rate
- Dependent on Cloud Licence, Basic: 15 min … 24 h / Advanced: 1 min … 24 h
Battery Life
- 1.5 years
Power Supply
- 4 x AAA batteries 1.5 V, alternatively Mains Unit via USB Connection
Memory
- 32,000 Measuring Values / Sum of all Channels
Storage Temperature
- -4° F to 122° F / -20° C to +50° C
Humidity - Capacitive
- See Probe Data
Temperature
- See Probe Data
Light
- See Probe Data
UV
- See Probe Data
- Monitoring the Microclimate in a Display Cabinet
- Checking and Documenting Ambient Conditions in an Exhibit Room
- Protecting Museum Objects using Light and Climate Measurements
- Good Ambient Conditions Inside a Storage Depot
