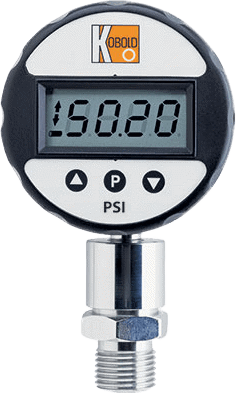

DSD - Digital Pressure Gauge
Brand: KOBOLD Instruments, IncOffering the latest solid-state design, the KOBOLD DSD Series digital pressure gauge is an economical, battery-powered digital replacement for mechanical pressure gauges.
Its ceramic pressure-sensing element provides superior stability and exceptionally long cycle life.
In addition, the digital pressure gauge includes a rotatable, 4-digit LCD display with zero (tare) reset.
Optional peak hold and relay features are controlled by push-button access to the programming menu, which can be password protected.
To suit the needs of many common applications, the DSD digital pressure gauge features a polyester housing with 316 stainless steel connection and NBR O-ring.
Features- Large 4 Digit LCD Display
- Battery Operated with On/Off Switch
- High Accuracy
- Optional Peak Hold, Auto-off and Relay
Specifications
Brand
Measuring Range
- 30” Hg Vacuum to 20,000 psig
Accuracy
- ± 0.5 % of F.S. ± 1 Digit
Housing Material
- Polyester
Wetted Materials
- 316 Stainless Steel
- Ceramic
- NBR
Fitting
- 1/4” NPT
- 1/2” NPT
Display
- 4-Digit LCD, 0.5” digits
Battery Type
- 9 Volt Lithium
