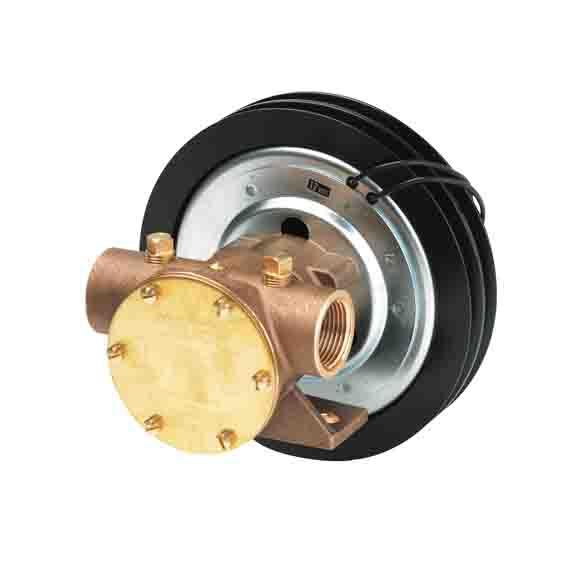

11860 Series 1" Electro-Magnetic Clutch Pump
Brand: Jabsco
Features
- Constructed from marine quality bronze and stainless steel for ruggedness and reliability
- Easy to service and maintain
- Inexpensive to buy and operate
- Will tolerate abrasive wear (this may affect performance - seek advice from your distributer)
- Handles hard and soft solids without clogging
- Can pump in either direction
- Will not airlock
1 - 5 of 5 Part Numbers
11860-0005
- Body Materials: Bronze
- Impeller: Nitrile
- Wearplate: Replaceable
- Shaft Material: Stainless Steel
- Seal: Carbon/Ceramic Mechanical Type
- Bearings: Twin Row, Ball Type
- Port Type: 1" NPT
- Clutch Type: Electro-magnetic 12 or 24 Vdc
- Pulley: 178 mm (7") 'A' or 'B' Section
- Weight: 6.8 kg (15 lbs)
- Coil: 12 Vdc
- Pulley: 2A Section
- Amp Draw: 4 Amp
11860-0006
- Body Materials: Bronze
- Impeller: Nitrile
- Wearplate: Replaceable
- Shaft Material: Stainless Steel
- Seal: Carbon/Ceramic Mechanical Type
- Bearings: Twin Row, Ball Type
- Port Type: 1" NPT
- Clutch Type: Electro-magnetic 12 or 24 Vdc
- Pulley: 178 mm (7") 'A' or 'B' Section
- Weight: 6.8 kg (15 lbs)
- Coil: 24 Vdc
- Pulley: 2A Section
- Amp Draw: 2 Amp
11860-0045
- Body Materials: Bronze
- Impeller: Nitrile
- Wearplate: Replaceable
- Shaft Material: Stainless Steel
- Seal: Carbon/Ceramic Mechanical Type
- Bearings: Twin Row, Ball Type
- Port Type: 1" NPT
- Clutch Type: Electro-magnetic 12 or 24 Vdc
- Pulley: 178 mm (7") 'A' or 'B' Section
- Weight: 6.8 kg (15 lbs)
- Coil: 12 Vdc
- Pulley: 1B Section
- Amp Draw: 4 Amp
11860-0046
- Body Materials: Bronze
- Impeller: Nitrile
- Wearplate: Replaceable
- Shaft Material: Stainless Steel
- Seal: Carbon/Ceramic Mechanical Type
- Bearings: Twin Row, Ball Type
- Port Type: 1" NPT
- Clutch Type: Electro-magnetic 12 or 24 Vdc
- Pulley: 178 mm (7") 'A' or 'B' Section
- Weight: 6.8 kg (15 lbs)
- Coil: 24 Vdc
- Pulley: 1B Section
- Amp Draw: 2 Amp
11860-0051
- Body Materials: Bronze
- Impeller: Neoprene
- Wearplate: Replaceable
- Shaft Material: Stainless Steel
- Seal: Carbon/Ceramic Mechanical Type
- Bearings: Twin Row, Ball Type
- Port Type: 1" NPT
- Clutch Type: Electro-magnetic 12 or 24 Vdc
- Pulley: 178 mm (7") 'A' or 'B' Section
- Weight: 6.8 kg (15 lbs)
- Coil: 24 Vdc
- Pulley: 2A Section
- Amp Draw: 2 Amp
1 - 5 of 5 Part Numbers
Specifications
Brand
Bearings
- Twin Row, Ball Typical
Body Material
- Bronze
Clutch Type
- Electromagnetic 12 or 24 Vdc
Impeller
- Neoprene or Nitrile
Port Type
- 1” NPT
Pulley
- 178 mm (7”) 'A' or 'B' Section
Seal
- Carbon / Ceramic Mechanical Typical
Shaft Material
- Stainless Steel
Wearplate
- Replaceable
Weight
- 15 lbs
- 6.8 kg
Flow Rate
- Nominal 23 US gallons/min (88 Litres/min) at 1750 rpm
Self-Priming
- From Dry Up to 2.4 m (7.8 ft)
