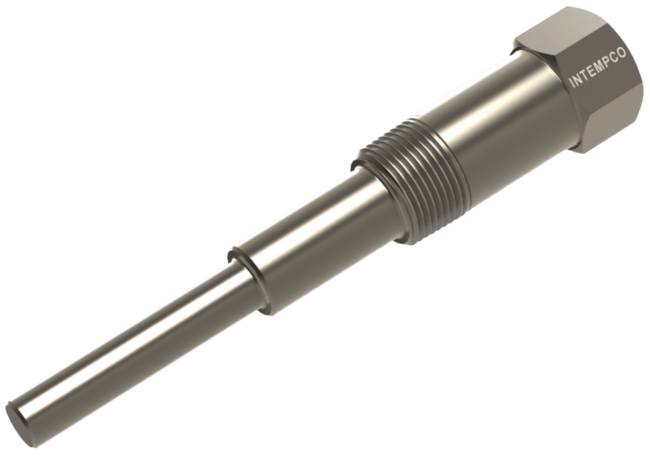

TW101 Threaded Stepped Barstock Thermowell
Brand: Intempco Controls, IncBarstock models are machined from one solid piece of Hexagon or Round Bar.
They offer the highest pressure ratings and strength due to their one piece construction.
Threaded process for screwing into a female threaded process connection such as a threadolet, adaptor or directly to a tapped access port.
Stepped thermowells are the most popular, they have a thick robust main stem section with the last 2.5 inches of the stem having a diameter of 0.50" to reduce thermal lag offer better time response.
Features- Machined from solid barstock
- Stepped stem profile
- 1/2", 3/4" and 1" NPT connections are standard
- BSPP standards available
- Standard bores for 6 mm, 0.260" and 0.245" diameter probes
- CRN available
Specifications
Brand
Approvals & Certifications
- CRN
- Internal Hydrostatic Pressure Test
- Liquid Dye Penetration Testing
- Well Material Certificate
- X-Ray Test
Bore Size
- 0.245” (6.2 mm) for 6 mm Diameter Probe
- 0.260” (6.6 mm) for 1/4” Diameter Probe
Insertion 'U' Length
- 0.1 to 36” (2.54 to 914.4 mm)
Instrument Connection
- 1/2” BSPP Female
- 1/2” NPS Female
- 1/2” NPT Female
- G 1/2” Female
Lagging Extension
- 0.1 to 12” (2.54 to 304.8 mm)
Materials of Construction
- Thermowell: 304 Stainless Steel
- Thermowell: 304L Stainless Steel
- Thermowell: 316 Stainless Steel
- Thermowell: 316L Stainless Steel
- Thermowell: Hastelloy C-276
- Thermowell: Inconel 600
NPT Connection
- 1” NPT Male
- 1/2” NPT Male
- 3/4” NPT Male
Plug Material
- Stainless Steel Plug with Chain
Sensor, Probe Diameter
- Probe: 1/4” (6.35 mm)
- Probe: 3/8” (9.5 mm)
- Probe: 6 mm
Special Cleaning & Packaging
- Cleaned for Oxygen Service
Thermowell
- Stepped Stem
