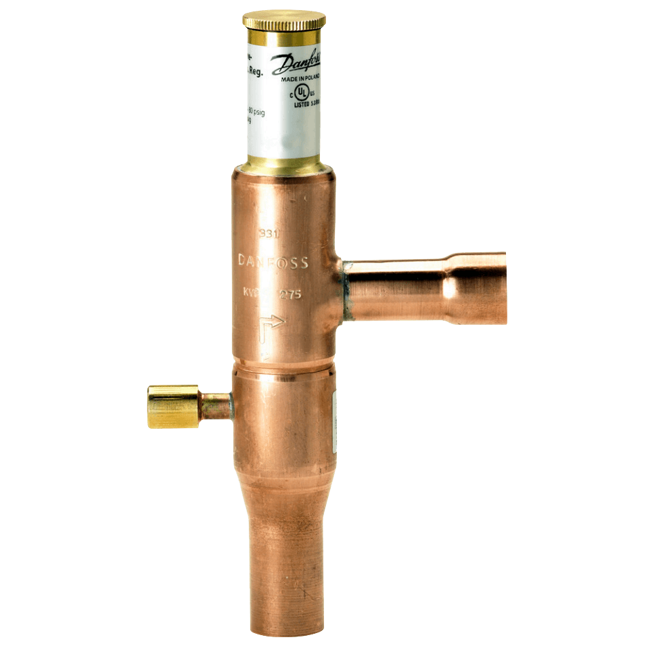

KVP Evaporator Pressure Regulator
Brand: DanfossKVP evaporator pressure regulator are mounted in the suction line of refrigeration and air conditioning systems.
They are used to maintain a constant pressure corresponding to a constant temperature on the evaporator.
They also protect against too low an evaporating pressure by throttling down when pressure falls below the set value.
They are also used to differentiate the evaporating pressures in two or more evaporators in systems with one compressor.
Specifications
Brand
Approvals & Certifications
- ATEX Hazard Zone 2
- UL (C,US)
Capacity
- Rated Capacity: 2.8 to 8.6 KW
Flow Rate
- 1.7 to 2.8 Kv (m³/hour) with Offset 0.6 bar
- 2.5 to 8 Kv (m³/hour) With, Max.
Materials of Construction
- Bellows: Stainless Steel
Mounting Position
- Any Orientation
Operating Pressure
- psi: 261 (kPa: 1,800, bar: 18) - Max.
Pressure Drop
- psi: 1.45 to 8.702 (kPa: 10 to 60, bar: 0.1 to 0.6)
Pressure Range
- Factory Setting: psi: 29 (kPa: 200, bar: 2)
- Maximum
- psi: 0 to 79.77 (kPa: 0 to 550, bar: 0 to 5.5) - Regulating Range
Process Temperature
- -45° to 130° C (-49° to 266° F)
Proof Pressure
- psi: 287.2 (kPa: 1,980, bar: 19.8) - Max.
Temperature Range
- Evaporating Temperature: -35° to 20° C (-31° to 68° F)
Tube Connection
- 1/2” Tube
- 1-1/8” Tube
- 1-3/8” Tube
- 5/8” Tube
- 7/8” Tube
