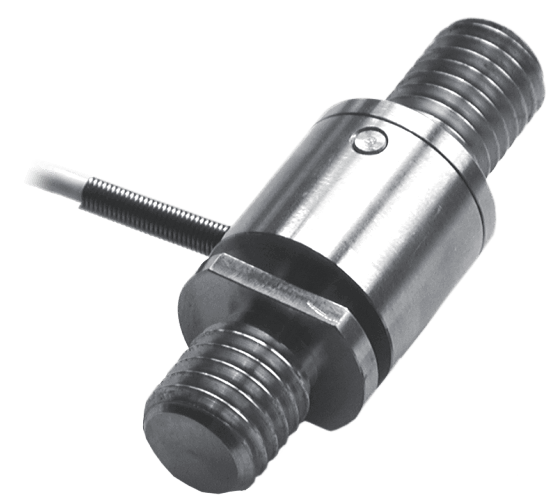

The XFTC300 series has been specifically developed to measure tension and/or compression in static and dynamic applications.

The miniature size and light-weight facilitate testing where these conditions are necessary. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gauges. The use of silicon strain gauges optimizes the load cell’s performance at low ranges and frequencies.

For sensors with a range of between 2 and 2 kN, a highlevel output model is available. With two male threads, the XFTC300 is easily installed in industrial or OEM applications. A strain relief spring strengthens the cable output.
Features
  • Tension and Compression
  • Small Design Easy to Mount
  • Wide Temperature Range in Option
  • Amplifier Integrated Optional
  • Easy to Customize Signal and Design

Specifications

Approvals & Certifications

  • CE

Compensated Temperature

  • 0° to 60° C (32° to 140° F)

Consumption

  • < 30 mA

Enclosure, Body Material

  • 304L Stainless Steel
  • Aluminum Alloy

Environmental Protection

  • IP50

Hysteresis

  • ≤ ± 0.5 % of Full Scale

Input Impedance

  • 1,000 to 3,000 ohms

Insulation Resistance

  • ≥ 100 megaohms at 50 Vdc

Linearization

  • ≤ ± 0.5 % of Full Scale

Operating Temperature

  • -40° to 120° C (-40° to 248° F)

Resistance

  • 500 to 1,000 ohms - Output Impedance

Sensitivity

  • < 2 % of Reading / 50° C (100° F) - Thermal Sensitivity Shift
  • ± 10 mV/V of Full Scale Output
  • ± 2 V ± 0.2 V of Full Scale Output
  • ± 5 V ± 0.2 V of Full Scale Output

Supply Voltage

  • ± 15 Vdc (± 12 to ± 18 Vdc)
  • 10 Vdc
  • 10-30 Vdc

Thermal Drift

  • < 2 % of Full Scale/50° C (100° F) - Thermal Zero Shift

UNF/UNC Connection

  • 10-32 UNF Male
  • 3/8”-24 UNF

Zero Offset

  • < ± 1 mV/V
  • 0 V ± 0.2 V
  • 2.5 V ± 0.2 V

  • Dynamic Strain Cylinder Regulation
  • Miniature Press-fit Device
  • Fatigue Test Benches
  • Robotics Regulation
  • Small Size Actuators
