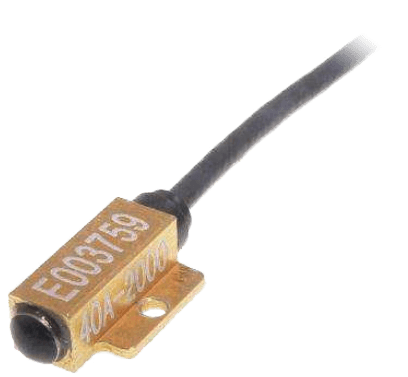

40A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 40A Accelerometer is a small piezo resistive accelerometer designed to be compliant with the latest SAE J211/J2570 (AUG2009) specifications.
This unit features built-in mechanical stops, anodized aluminum alloy housing and flexible cable output. The sensing element is fluid damped to extend useful frequency range and reduce the adverse effect of high frequencies ringing caused by sensor resonance.
Features- Silicon Piezo resistive Elements
- ±25 to ±2,000 g Ranges
- 2-10 Vdc Excitation
- -20° to 80° C Temperature Range
- Critically Damped Sensor
- Low Transverse Sensitivity
- <±20 mV Zero Offset
1 - 12 of 7,182 Part Numbers
40A-0025-010
- Range - ± 25 G
- Cable Length - 1 Custom Length: Inches
- Calibration - Standard
40A-0025-010-001
- Range - ± 25 G
- Cable Length - 1 Custom Length: Inches
- Calibration - 5 Vdc
40A-0025-010-002
- Range - ± 25 G
- Cable Length - 1 Custom Length: Inches
- Calibration - 2 Vdc
40A-0025-020
- Range - ± 25 G
- Cable Length - 2 Custom Length: Inches
- Calibration - Standard
40A-0025-020-001
- Range - ± 25 G
- Cable Length - 2 Custom Length: Inches
- Calibration - 5 Vdc
40A-0025-020-002
- Range - ± 25 G
- Cable Length - 2 Custom Length: Inches
- Calibration - 2 Vdc
40A-0025-030
- Range - ± 25 G
- Cable Length - 3 Custom Length: Inches
- Calibration - Standard
40A-0025-030-001
- Range - ± 25 G
- Cable Length - 3 Custom Length: Inches
- Calibration - 5 Vdc
40A-0025-030-002
- Range - ± 25 G
- Cable Length - 3 Custom Length: Inches
- Calibration - 2 Vdc
40A-0025-040
- Range - ± 25 G
- Cable Length - 4 Custom Length: Inches
- Calibration - Standard
40A-0025-040-001
- Range - ± 25 G
- Cable Length - 4 Custom Length: Inches
- Calibration - 5 Vdc
40A-0025-040-002
- Range - ± 25 G
- Cable Length - 4 Custom Length: Inches
- Calibration - 2 Vdc
1 - 12 of 7,182 Part Numbers
Specifications
Accuracy
- ± 1 % of Full Scale - Non-Linearity
Approvals & Certifications
- CE
Cable Material
- PFA
Enclosure, Body Material
- Aluminum - Anodized
Environmental Protection
- IP61
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 4,500 Hz
- 800-10,000 Hz - Natural Frequency
Insulation Resistance
- > 100 megaohms at 100 Vdc
Mounting
- Socket Head Cap Screws
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Output
- < ± 20 mV - Zero Acceleration Output
Resistance
- 1,000 ohms - Output Resistance
- 2,000 ohms - Input Resistance
Seat / Seal Material
- Epoxy Sealed
Sensitivity
- < 3 % - Transverse Sensitivity
- ± 0.1 %/°C - Thermal Sensitivity Shift
- 0.075-6.0 mV/g
Shock
- 5,000 G - Shock Limit
Storage Temperature
- -20° to 80° C (-4° to 176° F)
Thermal Drift
- ± 0.05 % of Full Scale/°C - Thermal Zero Shift
Torque
- 3 In/Lbs (0.7 Nm)
