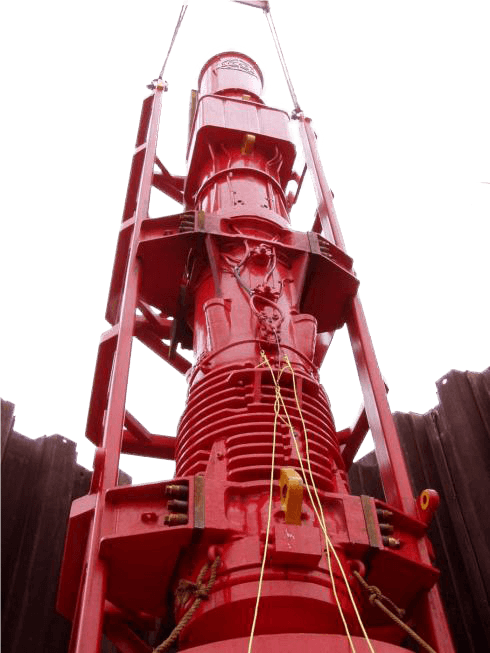

D160-32 Diesel Hammer
Brand: PACO Ventures, LLC
Specifications
Brand
Pump Setting 1
- 241,700 ft-lb (237 kNm)
Pump Setting 2
- 299,630 ft-lb (406 kNm)
Pump Setting 3
- 327,230 ft-lb (444 kNm)
Pump Setting 4
- 394,250 ft-lb (535 kNm)
Blows Per Minute
- 36 - 46
Related Piston Stroke
- 6.8 - 11.1 ft (2.0 - 3.4 m)
Fuel Consumption at Full Load
- 12 gal/hr (45 L/hr)
Oil Consumption
- 1.32 gal/hr (5 L/hr)
Hammer
- 68,785 lb (31,200 kg)
Piston
- 35,275 lb (16,000 kg)
Hammer w/ Standard Guiding
- 74,516 lb (33,800 kg)
Fuel Tank
- 63 gal (238 liters)
Oil Tank
- 12 gal (80 liters)

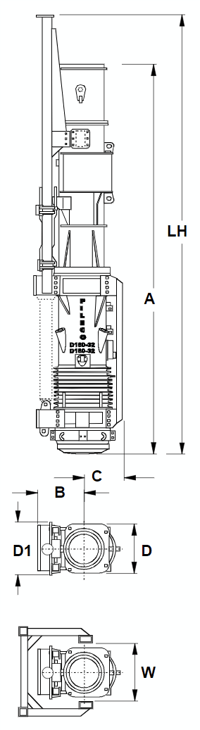

A - Length
- 26 ft (7,864 mm)
LH - Length, Standard
- 26 ft (7,864 mm)
B - Center to Trip
- 34 in (856 mm)
C - Center to Pump Guard
- 25 in (622 mm)
D - Width of Hammer
- 46 in (1,156 mm)
D1 - Width of Trip
- 51 in (1,300 mm)
W - Minimum Lead Width
- 48 in (1,220 mm)
