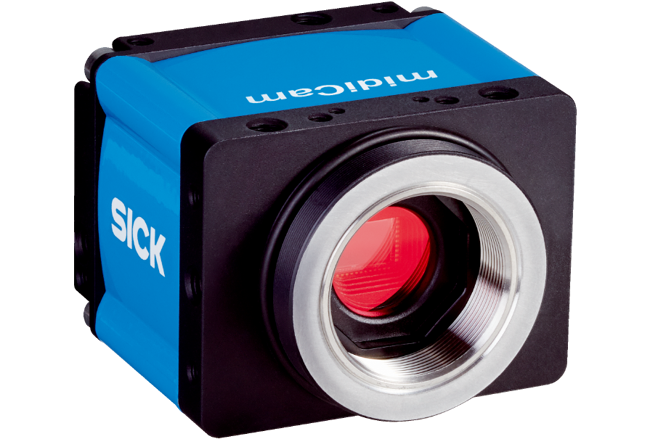

MidiCam 2D Machine Vision
Brand: Sick AGWith IP 67 enclosure rating, the midiCam streaming camera family is ideally suited to use in harsh industrial environments. This is why the midiCam has an M12 GigE interface – the standard for industrial image processing – as well as industry-grade M12 connections for the voltage supply and trigger signals.
As an alternative, it is also possible to operate it with just one cable measuring up to 100 m in length using Power over Ethernet (PoE).
The midiCam is available with 1 or 2 megapixel resolution and in color, monochrome, or NIR (optional) variants. CMOS image sensors use global shutter technology and enable multiple image sections (AOI). Image recording and transmission are decoupled in the internal 60 MB memory bank and multi-camera applications are therefore supported.
At a glance
- Rugged housing with IP 67 enclosure rating
- Power over Ethernet (PoE)
- Wide-range voltage supply 12-24 V DC
- M12 plug connector for the GigE interface
- M12 plug connector for the voltage supply and digital inputs and outputs
- Color, monochrome, and NIR variants
- Connection for C mount lenses
- The midiCam family is ideal for use on the Sensor Integration Machine (SIM), supporting complex image processing tasks
- Ideal for multi-camera applications, e.g., several midiCams on the SIM
- Simple operation using just one connecting cable thanks to PoE
- Can be used reliably, even when you need ruggedness in harsh industrial environments and IP 67 enclosure rating
- Intuitive operation via the I2D Software Suite for Windows from SICK
- Simple plug and play installation on the SIM thanks to pre-assembled cables
- Wide range of C mount lenses available
1 - 5 of 5 Part Numbers
6060399
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,280 px x 1,024 px (1.31 Mpixel)
- Sensing Used - e2V EV76C560ABT
- Type - I2D601M-MCB71
6060400
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,280 px x 1,024 px (1.31 Mpixel)
- Sensor - CMOS Color
- Sensing Used - e2V EV76C560ACT
- Type - I2D601C-MCB71
6060401
- Products by Tasks - Presence inspection, quality inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,280 px x 1,024 px (1.31 Mpixel)
- Sensor - CMOS Monochrome NIR
- Sensing Used - e2V EV76C661ABT
- Type - I2D601N-MCB71
6060402
- Products by Tasks - Presence inspection, quality inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,600 px x 1,200 px (1.92 Mpixel)
- Sensor - CMOS Monochrome
- Sensing Used - e2V EV76C570ABT
- Type - I2D602M-MCB71
6060403
- Products by Tasks - Presence inspection, quality inspection, Color inspection, Messuring, 2D, Positioning
- Sensor Resolution - 1,600 px x 1,200 px (1.92 Mpixel)
- Sensor - CMOS Color
- Sensing Used - e2V EV76C570ACT
- Type - I2D602C-MCB71
1 - 5 of 5 Part Numbers
Specifications
Brand
Sensor
- CMOS Monochrome
- CMOS Color
- CMOS Monochrome NIR
Sensor Resolution
- 1,280 x 1,024 pixels (1.31 Mpixel, 5:4, SXGA)
- 1,600 x 1,200 pixels (1.92 Mpixel, 4:3, UXGA)
Light Source
- External Illumination
Enclosure Rating
- IP67
- IP65
Supply Voltage
- 12-24 Vdc
Lens
- C-mount
Optical Format
- 1/1.8"
Communication Interface
- Ethernet, UDP/IP
Configuration Software
- I2D Software Suite
Dimensions
- 44.7 mm x 53 mm x 41 mm
- Single or multi-camera systems in conjunction with the Sensor Integration Machine (SIM)
- Automated image processing applications in the automotive, robotics, logistics, electronics, solar, and food and beverage industries, for example, for quality inspection, traceability, and object detection
