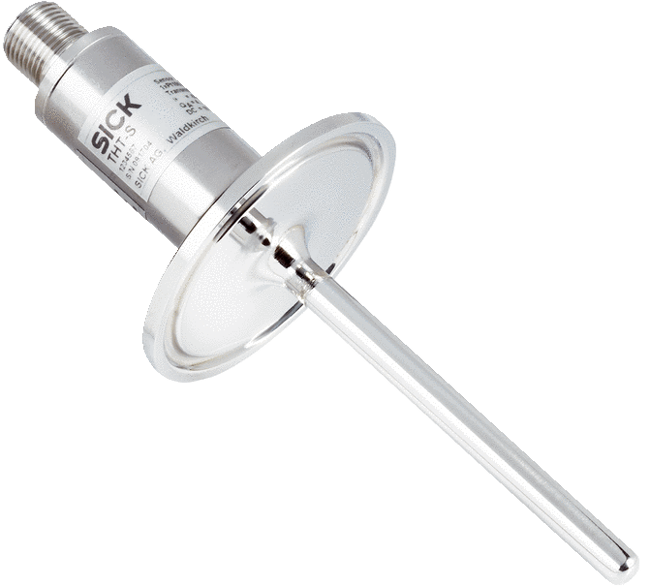

THTS Temperature Sensor
Brand: Sick AGThe THTS temperature sensor is a compact, hygienically-graded, cost-effective Pt100 resistance thermometer.
It is designed for applications in the food and beverage industry as well as in the cosmetics and pharmaceutical segment.
Due to the use of high-grade stainless steel and a crevice-free design of the wetted parts, stringent hygienic requirements are met.
The range of common hygienic process connections that are welded gap-free to the connection housing and multiple insertion lengths allow universal use.
The THTS is well suited for CIP and SIP processes.
This enables safe hygienic operation in conjunction with optimized system availability.
Besides its direct electrical connection to the Pt100 element, the THTS is available with an integrated transmitter with 4 mA ... 20 mA output signal.
Features- Convenient system integration – installation in narrow installation space possible through compact dimensions
- Safe, hygienic operation due to wetted parts made from high-grade stainless steel, hygienically-graded surface finish and a gap- and crevice-free design
- Rugged: Connection housing is easy to clean and splash-proof
- Quick and safe installation
- Very good long-term stability, accuracy and linearity
- Quick response time
- Optimal solutions for individual requirements due to versatile configurability
1 - 12 of 408 Part Numbers
THTS-1AA510256MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 20, with Grooved Cap Nut
- Installation Length / Diameter - 25 mm / 6 mm
THTS-1AA510506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 20, with Grooved Cap Nut
- Installation Length / Diameter - 50 mm / 6 mm
THTS-1AA510756MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 20, with Grooved Cap Nut
- Installation Length / Diameter - 75 mm / 6 mm
THTS-1AA511006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 20, with Grooved Cap Nut
- Installation Length / Diameter - 100 mm / 6 mm
THTS-1AA511506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 20, with Grooved Cap Nut
- Installation Length / Diameter - 150 mm / 6 mm
THTS-1AA512006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 20, with Grooved Cap Nut
- Installation Length / Diameter - 200 mm / 6 mm
THTS-1AA520256MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 25, with Grooved Cap Nut
- Installation Length / Diameter - 25 mm / 6 mm
THTS-1AA520506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 25, with Grooved Cap Nut
- Installation Length / Diameter - 50 mm / 6 mm
THTS-1AA520756MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 25, with Grooved Cap Nut
- Installation Length / Diameter - 75 mm / 6 mm
THTS-1AA521006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 25, with Grooved Cap Nut
- Installation Length / Diameter - 100 mm / 6 mm
THTS-1AA521506MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 25, with Grooved Cap Nut
- Installation Length / Diameter - 150 mm / 6 mm
THTS-1AA522006MZ
- Output Signal - Measuring Transducer 4-20 mA, 2-Wire
- Measuring Range - -50° to 150° C
- Process Connection - Conical Coupling, DIN 11851, DN 25, with Grooved Cap Nut
- Installation Length / Diameter - 200 mm / 6 mm
1 - 12 of 408 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP69
- IP67
Measuring Range
- -50° to 150° C
- -50° to 250° C
Insertion Length
- 25 to 200 mm
Probe Diameter
- 6 mm
Process Conenction
- Conical Coupling (DIN 11851) DN 50 with Union Nut
- Conical Coupling (DIN 11851) DN 40 with Union Nut
- Conical Coupling (DIN 11851) DN 32 with Union Nut
- Conical Coupling (DIN 11851) DN 20 with Union Nut
- Conical Coupling (DIN 11851) DN 25 with Union Nut
- Clamp (DIN 32676) DN 10, DN 15, DN 20, DN 25, DN 32, DN 40, DN 50
- Clamp (ISO 2852) DN 10, DN 12, DN 17.2, DN 25, DN 21.3, DN 33.7, DN 38, DN 40, DN 51
- Varivent Connection Type B, DN 10, DN 15
- Varivent Connection Type F, DN 25
- Tri-Clamp 1-1/2”, 1”
- Tri-Clamp 2”
- Tri-Clamp 1/2”, 3/4”
- Varivent Connection Type N, DN 40
Output Signal
- 4-20 mA, 2-Wire (RA ≤ (L+ - 10 V) / 0.023 A [Ohm])
- Pt100, 4-Wire
Electric Connection
- M12 Round Connector x 1, 4-Pin
Accuracy
- Sensor Element: Class A According to IEC 60751
- Opt. Measuring Transducer: ± 0.25 K
