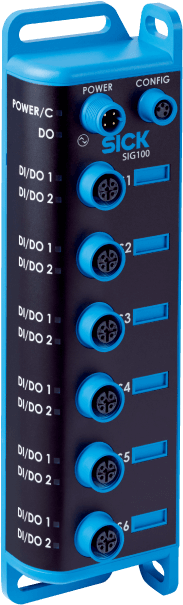

SIG100 Sensor Integration Gateway
Brand: Sick AGThe SIG100 Sensor Integration Gateway is an IO-Link sensor hub which makes collecting and monitoring digital standard signals easier than ever.
Logical decisions are made based on the user configuration, and the results are transmitted via IO-Link to any IO-Link master.
Devices are parameterized quickly and easily via an integrated USB interface and the SOPAS ET graphical user interface.
For various applications, a drag & drop logic editor enables the quick and easy creation of an autonomous sensor system which can be operated separately from the central controller (PLC).
Features- Solution for complex application tasks by creating simple sensor systems using the logic editor integrated into SOPAS ET
- Uniform wiring concept via IO-Link for easy and transparent data integration
- Easy, intuitive parameterization via USB and the SOPAS ET graphical user interface
Specifications
Brand
Certifications & Approvals
- CE
- EAC
Enclosure Rating
- IP67
Supported Product
- Binary Switching Sensors
- Binary Actuators
Communication
- USB
Input/Output
- S1-S6 6 Ports. Pin² and Pin4 can be customized as a Digital Input or Digital output to enable the transmission of up to 12 Digital Input or output signals
- CONFIG Port for configuration via USB with SOPAS ET (SOPAS ET can be downloaded for free from www.sick.com)
