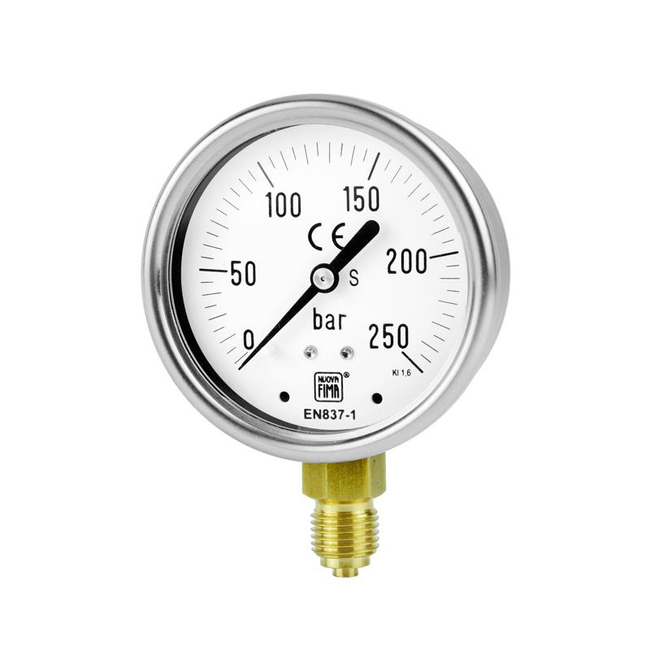

Nuova Fima Bourdon Tube Pressure Gauge, MGS10 DN63

MGS10 DN63 Bourdon Tube Pressure Gauge

Brand: Nuova Fima
Add Product to My Catalog

These instruments are built in conformity with the construction and safety S2 specifications of EN 837-1.

Instruments designed for use on power units, pump, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines, refrigerating plants and on machines and equipment where pulsating pressures or mechanical vibrations are apparent.

They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity or do not crystalize

Specifications

Brand

Accuracy Class

  • Fillable Model: 1,6 as Per EN 837-1

Ambient Temperature Range

  • Fillable Model: -13° to +149° F (-25° to +65° C)
  • Filled Model: +32° to +149° F (0° to +65° C) with Glycerine Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Silicon Oil Filling

Bourdon Tube

  • Fillable Model: Copper Alloy

Case

  • Fillable Model: Stainless Steel

Design

  • Fillable Model: EN 837-1

Dial

  • Fillable Model: Plastic, White with Black Markings

IP Protection Rating

  • Fillable Model: IP67 as Per EN 60529 / IEC 529

Movement

  • Fillable Model: Copper & Stainless Steel

Over Pressure Limit (15 Minutes Maximum)

  • Fillable Model: 15 % of Full Scale Value for Pressure Ranges over 1500 psi (100 bar)
  • Fillable Model: 25 % of Full Scale Value for Pressure Ranges ≤ 1500 psi (100 bar)

Pointer

  • Fillable Model: Not Adjustable, Aluminum, Black

Process Fluid Temperature

  • Fillable Model: +212° F (Max. +100° C)
  • Filled Model: Max.

Ranges

  • Fillable Model: from 0 to 15 to 0 to 10,000 psi (From 0 to 1 to 0 to 600 bar or other Equivalent Units)

Ring

  • Fillable Model: Crimped
  • Fillable Model: Polished
  • Fillable Model: Stainless Steel

Safety Designation

  • Fillable Model: S2 as Per EN 837-1

Socket Material

  • Fillable Model: Copper Alloy

Thermal Drift

  • Fillable Model: Max.

Window Material

  • Fillable Model: Polycarbonate

Working Pressure

  • Fillable Model: 66 % of Full Scale Value for Pulsating Pressure
  • Fillable Model: 75 % of Full Scale Value for Static Pressure
