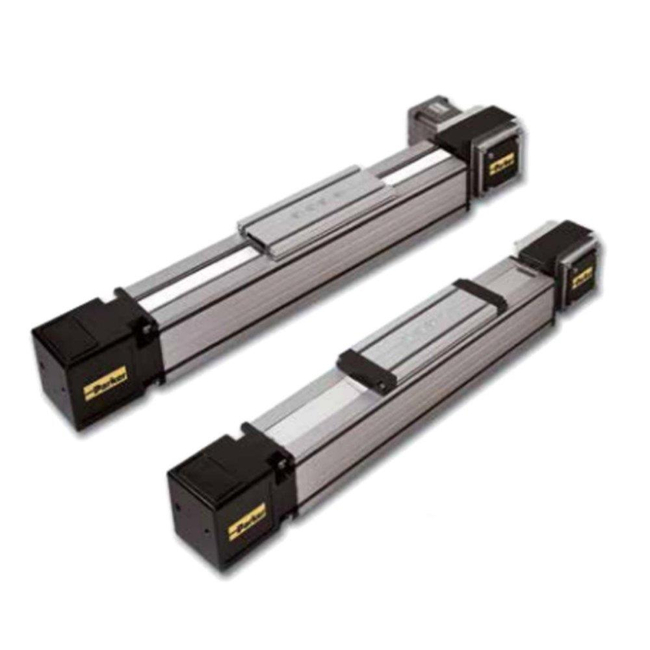

HPLA 180 Belt Driven, Roller Wheel, Rodless Linear Actuator
Brand: Parker HannifinUtilized in many types of industrial applications, the HPLA series of linear actuators is an extremely rugged and industrially hardened linear actuator that offers high speed, high acceleration, and long travel lengths, combined with a stiff, rigid construction.
It is ideally suited for use in either single axis configurations or high speed, multi-axis gantry systems.
The HPLA carriage is rigidly supported on three sides by heavy duty, roller bearings housed inside of a rugged aluminum housing.
The bearing wheels are pre-loaded to eliminate play in the system and strategically located along the carriage to evenly distribute load across the length of the carriage.
The HPLA's high strength, steel reinforced belt and pulley system provides fast, highly repeatable positioning of the carriage.
The HPLA utilizes over-sized pulleys which allow the it to provide very high levels of thrust output relative to the profile size.
The mounting of the belt to the carriage is designed to enable easy replacement of the belt without the need to remove the payload, while simultaneously providing a very rigid connection.
Having a low coefficient of friction, the carriage design provides a high mechanical efficiency and long service life.
Special carriage lengths and linear units with multiple carriages are available for custom applications.
Features- Standard travel up to 9240mm, but longer strokes available - consult factory
- Rugged construction for heavy duty applications
- Timing belt and pulley drive mechanism for fast, accurate positioning
- Seal Strip (IP30) for additional environmental protection
- Low wear and low particle generation (clean room suitable to class 100)
- T-slot mounting along actuator body and carriage
Specifications
Brand
Additional Protection Option
- Steel Strip Cover
Approvals & Certifications
- Cleanroom Certified (up to Class 100/ISO Class 5)
Bearing Type
- Roller Wheel - Polyamide (Steel Option for High Load)
Corrosion Resistant Option
- Yes (Stainless Steel)
Drive Type
- Belt
Idler Unit Option
- Yes
IP Protection Rating
- IP30
Linear Feedback Device
- Optional
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Payload FZ (N)
- 4668 (Polyamide) / 14900 (Steel)
Maximum Speed (inch/sec)
- 200
Maximum Speed (m/sec)
- 5
Maximum Stroke (inch)
- 363 (Single Profile) / 787 (Max. by Splicing)
Maximum Stroke (mm)
- 9240 (Single Profile) / 20000 (Max. by Splicing)
Maximum Thrust FX (Lbs)
- 1226
Maximum Thrust FX (N)
- 5455
Position Repeatability (± Inch)
- 0.008
Position Repeatability (± mm)
- 0.2
Profile Width (mm)
- 180
Series
- HPLA
Typical Payload FZ (N)
- 750 - 14900
- Pick and Place
- Factory Automation
- Stacking / Palletizing
- Material Handling
