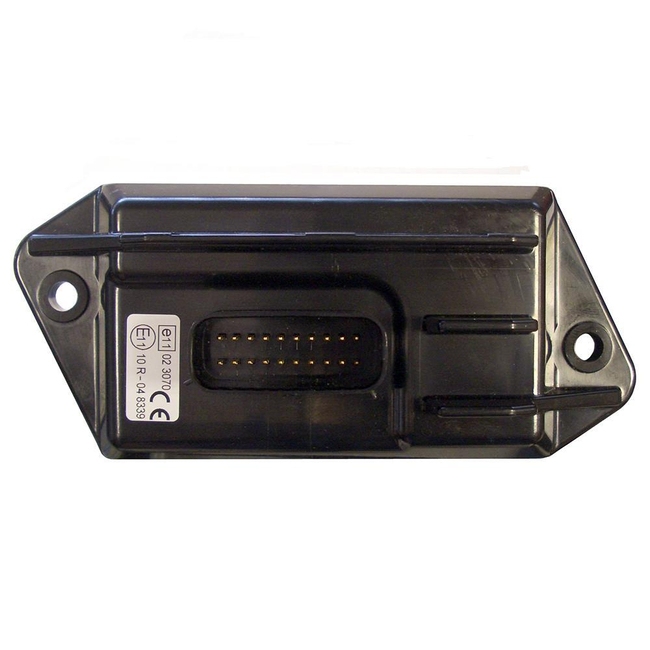

J1939 Slave Controller Module - CM0410
Brand: Parker HannifinThe Electronic Controls Division mobile machine controllers allow modular system configuration reducing external spend.
Parker's J1939 slave controller, the CM0410 delivers IP67 rated inputs and outputs for auxiliary functions where rugged outdoor control is needed. It can be mounted anywhere on the machine.
With 4 inputs and 10 outputs, it is perfect for controlling mechanical relays or low current loads via J1939 messages on the CAN bus in mobile and transportation markets.
Features- Monitors up to 4 inputs - analog, digital or frequency
- Can detect burnt out bulbs with a current measurement pass through
- Has 10 outputs with error checking, 2 of which are capable of up to 2 amps
Specifications
Brand
Approvals & Certifications
- 2004/108/EC
Communication Interface
- 1 x CAN (J1939)
Controller Type
- Slave / Expansion Module
Electrical Connectors
- Molex MX150
Housing Material
- Plastic
IP Protection Rating
- 69K
Markets
- Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Number of Inputs
- 4
Number of Outputs
- 10
Output Current Rating (A)
- 2
Power Supply
- 12/24
Software
- Preconfigured
Voltage (Vdc)
- 9-32
Working Temperature (°C) Maximum
- 85° C
Working Temperature (°C) Minimum
- -40° C
- Fan Drive Controller
- Truck Mounted Crane Control
- Door Open Control
