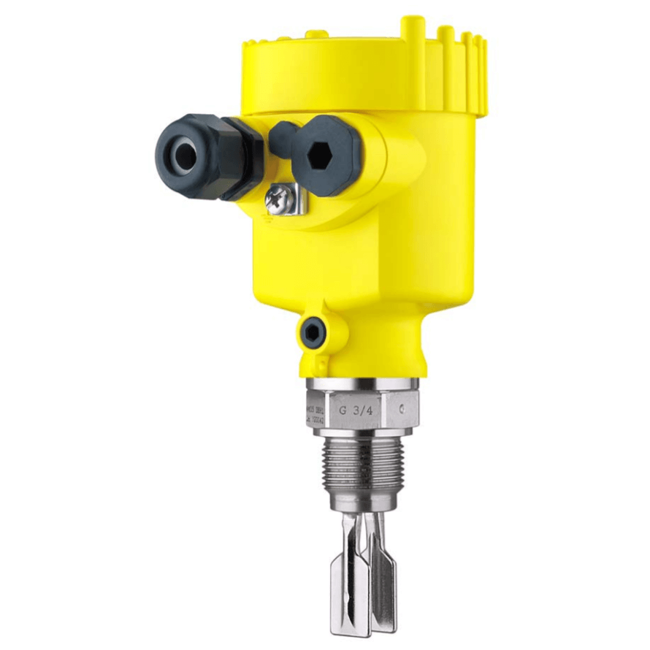

Vegaswing 61 Vibrating Level Switch
Brand: VEGAThe Vegaswing 61 is used as a universal vibrating level switch for all liquids.
Independent of the mounting position, it detects reliably with millimetre accuracy the limit level.
The instrument can be used as empty or full detector, as approved overfill protection, dry run protection or pump protection in vessels and pipelines.
The Vegaswing 61 offers maximum reliability and safety in a wide application range.
Features- Minimum Time and Cost Expenditure Due to Simple Setup Without Medium
- Precise and Reliable Function Due to Product-Independent Switching Point
- Low Maintenance Costs
Specifications
Brand
Ambient Temperature Range
- -40° to 70° C (-40° to 158° F)
Applications
- Can be used as Empty or Full Detector, as Approved Overfill Protection, Dry Run Protection or Pump Protection in Vessels & Pipelines
- Detects Reliably with Millimetre Accuracy the Limit Level
- Vibrating Level Switch for Liquids
Approvals & Certifications
- ABS
- ATEX
- CSA
- FM
- GL
- IEC
- LRS
- SIL
BSP Connection
- G 3/4” Threads - Process Fitting
Cable Entry
- M20 x 1.5
Connection Material
- 316L Stainless Steel
- ECTFE
- Enamel
- F53 Stainless Steel
Enclosure, Body Material
- Aluminum
- Plastic
- Stainless Steel
Environmental Protection
- IP67
Flange Size - 1” (DN 25)
- 1” (DN 25) - Class 150 ASME
- 1” (DN 25) - PN 40
Flange Size - 2” (DN 50)
- 2” (DN 50) - Class 150 ASME
- 2” (DN 50) - PN 40
Flange Type
- Raised Face (RF)
Hysteresis
- Approximately 0.08” (2 mm) with Vertical Installation
Mounting Position
- Vertical Installation
NPT Connection
- 3/4” NPT - Process Fitting
Operating Voltages
- 20-253 Vac
- 20-253 Vdc
- 50/60 Hz
Output
- 10-400 mA - Load Current
Output Format
- Relay Output - Electronics Versions
- Transistor Output - Electronics Versions
Output Function
- NAMUR Output
Pressure Range
- psig: -14.5 to 1.450 (kPa: -100 to 10,000, bar: -1 to 100)
Process Fitting Details
- Hygienic Fittings
- Slotted Nuts
Process Temperature
- -50° to 250° C (-58° to 482° F)
Response Time
- 500 milliseconds (ON/OFF) - Switching Delay
Seat / Seal Material
- Klingersil C 4400 - Wetted Materials
Size
- Clamp: 1”
- Clamp: 2”
Supply Voltage
- 10-36 Vdc
Version / Leadwires
- 2-Wire Versions - Electronics Versions
Wetted Materials
- 316L Stainless Steel
- Alloy 400 (2.4360)
- Alloy C-22 (2.4602)
- ECTFE
- Enamel Paint
